Plain Surface Cast Iron 5.6 Grade Rail Shoulder

1 / 5

Plain Surface Cast Iron 5.6 Grade Rail Shoulder

Customization:	Available
Customized:	Customized
Certification:	ISO9001

Send Inquiry

Product Description

Basic Specifications

Model NO.

For rail UIC54, UIC60, 115RE, 50kg, 60kg

Type

Shoulder

Material

Qt500-7 (Ggg50) / Qt450-10(Ggg45)

Surface

Plain (Oiled)

Condition

New

Keywords

Rail Shoulder / M.C.I. / S.G.C.I.

Application

Pre-Stressed or Bi-Block Concrete Ties

HS Code

8608009000

Capacity

1000 Boxes Per Month

Origin

China

Product Introduction

Plain Surface Cast Iron 5.6 Grade Rail Shoulders are essential components cast directly into concrete ties to facilitate the secure fixation of Elastic Rail Clips. These shoulders are precision-engineered from high-quality materials including pearlitic malleable iron (M.C.I. Inserts) and spheroid graphite iron (S.G.C.I. Inserts).

We provide two primary configurations: Single Stem Iron Shoulders, typically utilized in pre-stressed concrete ties, and Twin Stem Iron Shoulders, which are standard for Bi-Block or Twin Block concrete tie systems. These accessories are tailored for specific rail sections to ensure optimal elastic clip toe loading and long-term track integrity.

Technical Parameters

Property	QT500-7 (GGG50)	QT450-10 (GGG45)	QT400-15 (GGG40)
Compatible Rails	UIC54, UIC60, 115RE, 50kg, 60kg, BS80lbs, BS100lbs (or custom drawings)
Carbon (C%)	3.60 - 3.80	3.40 - 3.90	3.50 - 3.60
Silicon (Si%)	2.50 - 2.90	2.70 - 3.00	3.00 - 3.20
Manganese (Mn%)	≤ 0.6	0.2 - 0.5	≤ 0.5
Phosphorus (P%)	≤ 0.08	≤ 0.07	≤ 0.07
Surface Finish	Plain Oiled or Black Treated

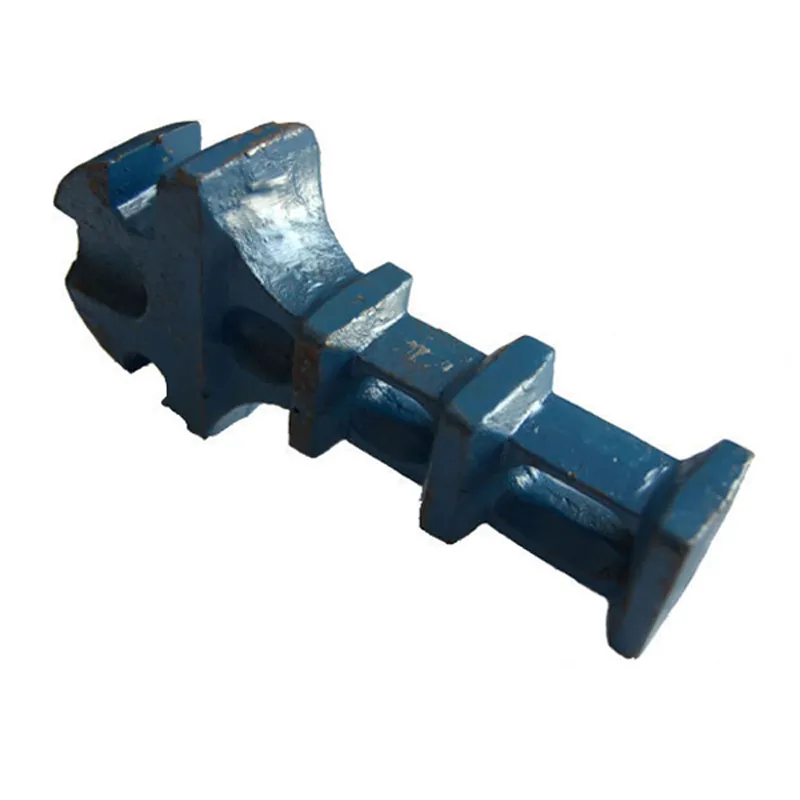

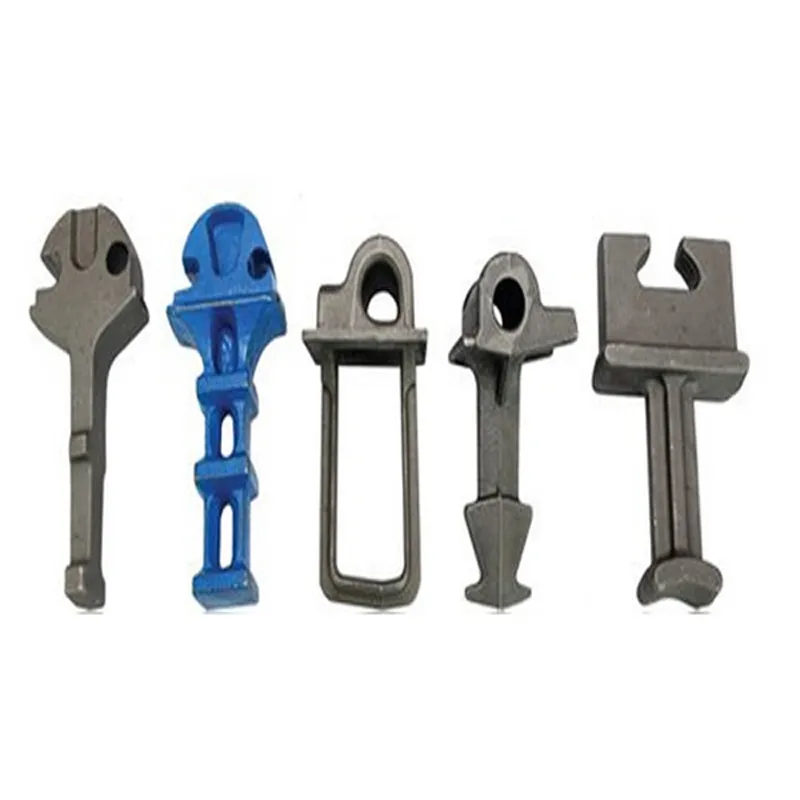

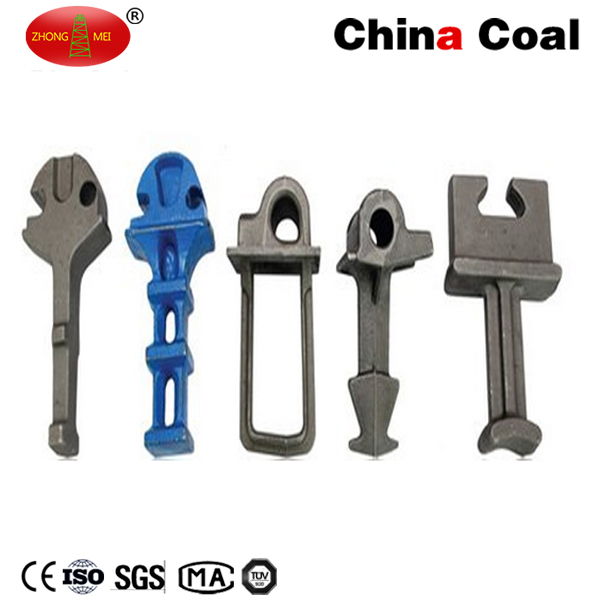

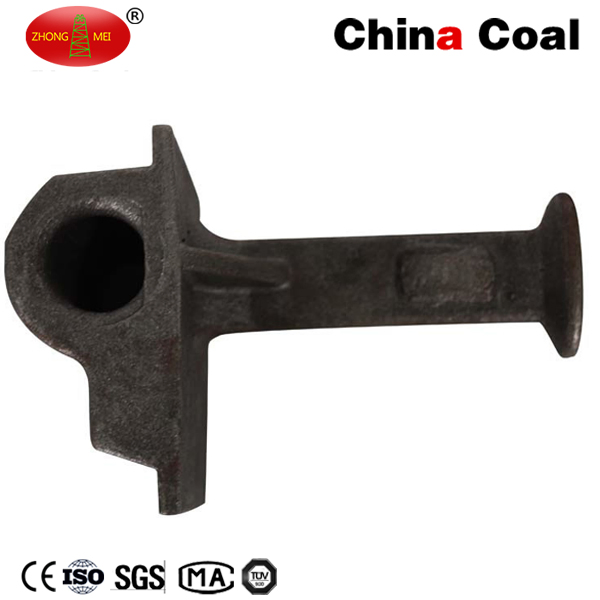

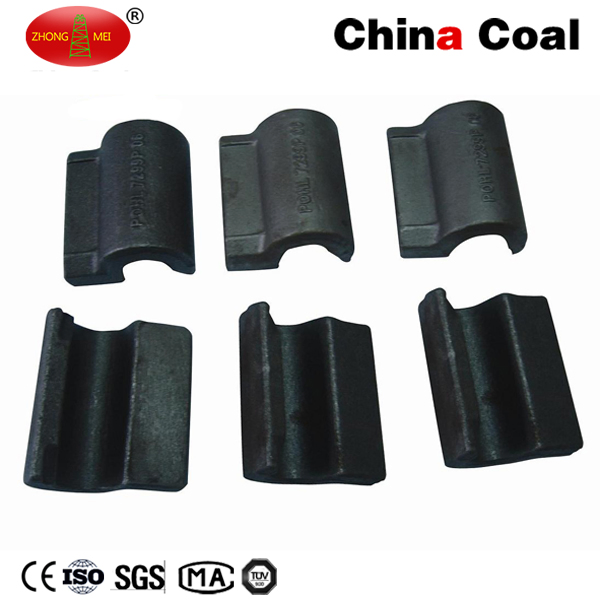

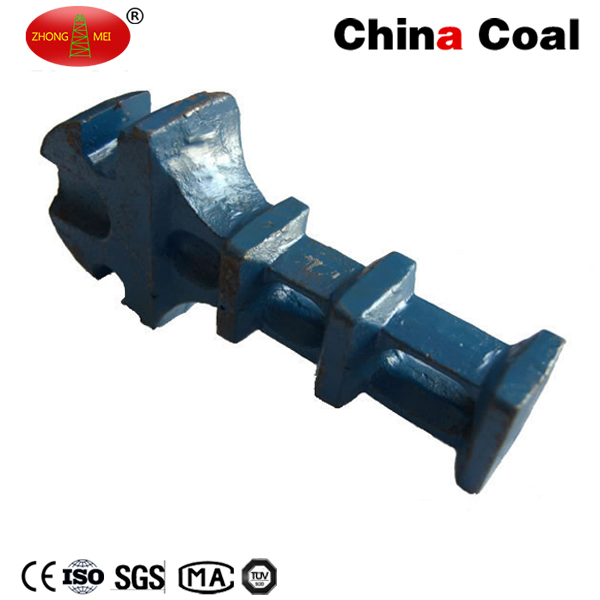

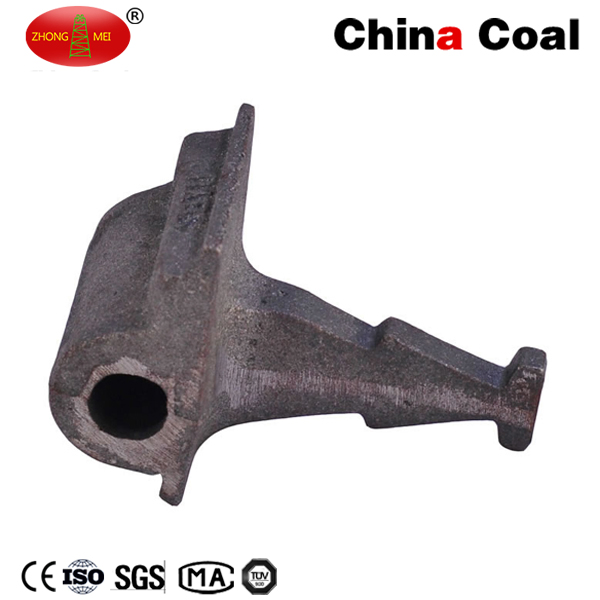

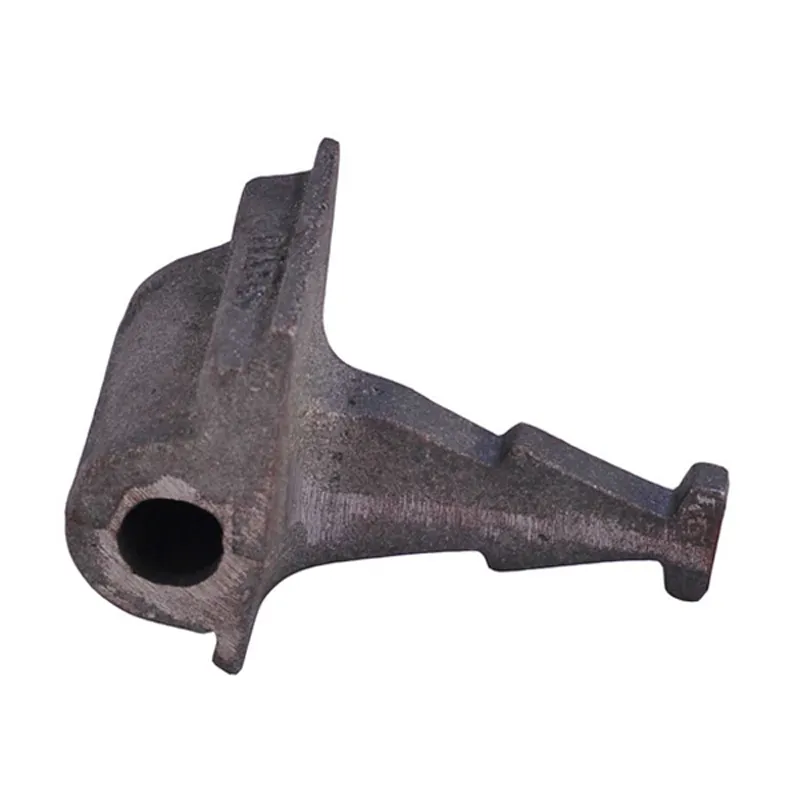

Product Gallery

Frequently Asked Questions

1. What materials are used for these rail shoulders?

They are manufactured from high-grade pearlitic malleable iron (M.C.I.) or spheroid graphite iron (S.G.C.I.), specifically grades like QT500-7, QT450-10, and QT400-15.

2. What is the difference between Single Stem and Twin Stem shoulders?

Single Stem shoulders are primarily designed for pre-stressed concrete ties, while Twin Stem shoulders are optimized for Bi-Block or Twin Block concrete tie systems.

3. Which rail types are compatible with these shoulders?

These shoulders are compatible with major international rail standards including UIC54, UIC60, 115RE, 50kg rail, 60kg rail, BS80lbs, and BS100lbs.

4. What surface treatments are available?

The standard finish is plain oiled to prevent corrosion, but we also offer black treated surfaces depending on the environmental requirements.

5. Can the shoulders be customized?

Yes, beyond standard specifications, we can manufacture rail shoulders based on specific technical drawings provided by the customer.

6. What is the production capacity for this product?

Our current production capacity is approximately 1000 boxes per month, ensuring a steady supply for large-scale railway projects.
