Product Description

Overview

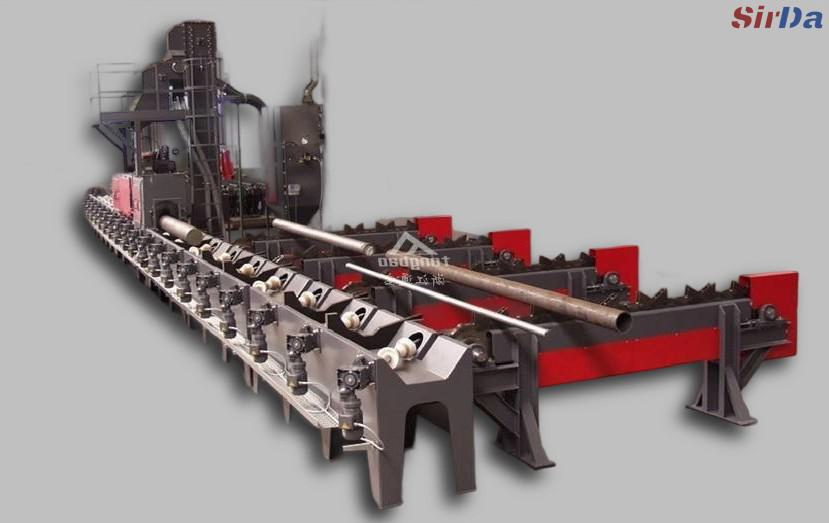

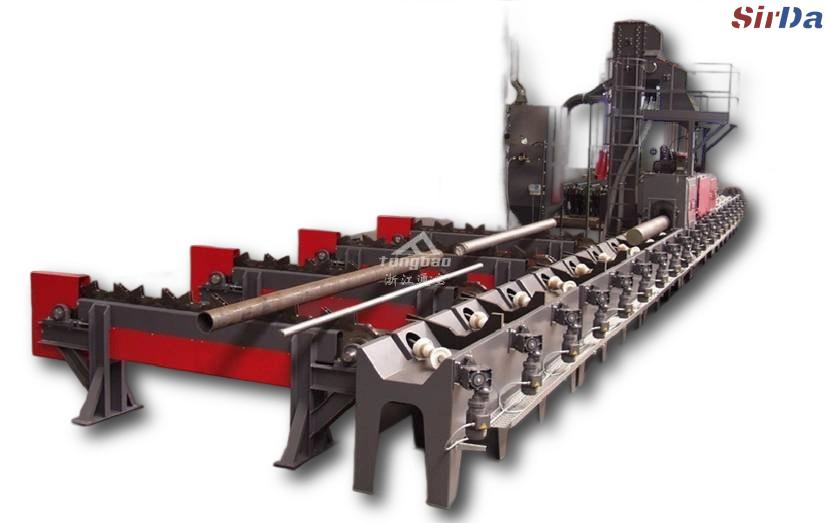

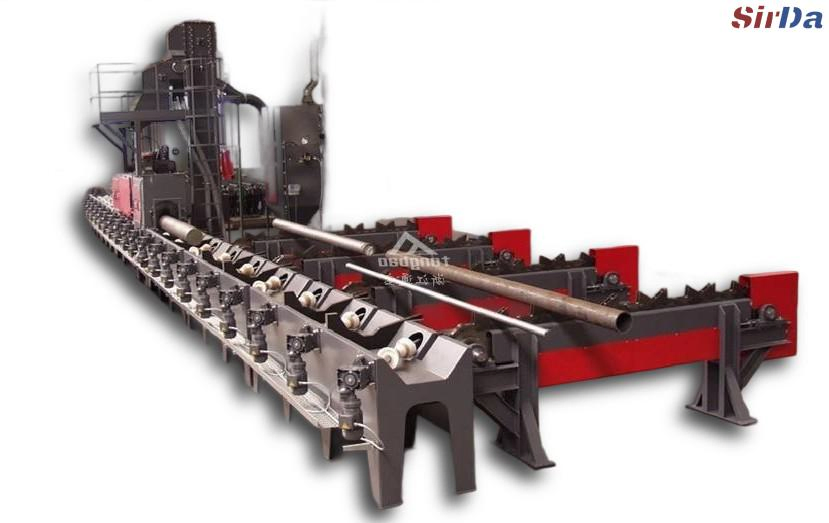

Q69 Series Roller Conveyor Type Shot Blasting Machine is used to clean external surface of steel pipe, round bar, drilling rod etc. It can clean rust, oxide layers, paint film and intensify the surface.

Basic Info
Model NO.Q69 Shot Blast Machine
ApplicationSteel Plate Pre-Treatment
FuelElectric
TypeCrawler Abrator
CleanlinessHigh Cleanliness
AutomationAutomatic
CertificationCE, RoHS
Cleaning StandardSA 2.5
Weight5tons - 30tons
Core ComponentsPLC, Engine, Bearing, Gearbox, Motor
Applications
  • Removing scale and rust from metal profiles and sheet metal components.
  • Surface treatment of H-beams, steel plates, profiles, angle steel, pipes, etc.
  • Sandblasting cleaning of complex welded structures (top/bottom plates, welded ribs).
  • Key areas: Shipbuilding, automotive, bridges, and heavy machinery.
Specification & Key Components
Shot Blast Cabinet
Shot Blast Cabinet

Equipped with a robust roller conveyor system. Rollers within the cabinet are protected by special alloy sleeves, ensuring a service life exceeding 4,000 hours.

Blast Chamber
Blast Chamber

Modular design with four layers of rubber curtains. Walls are protected by SPMn13 and 65Mn linings for easy replacement and durability.

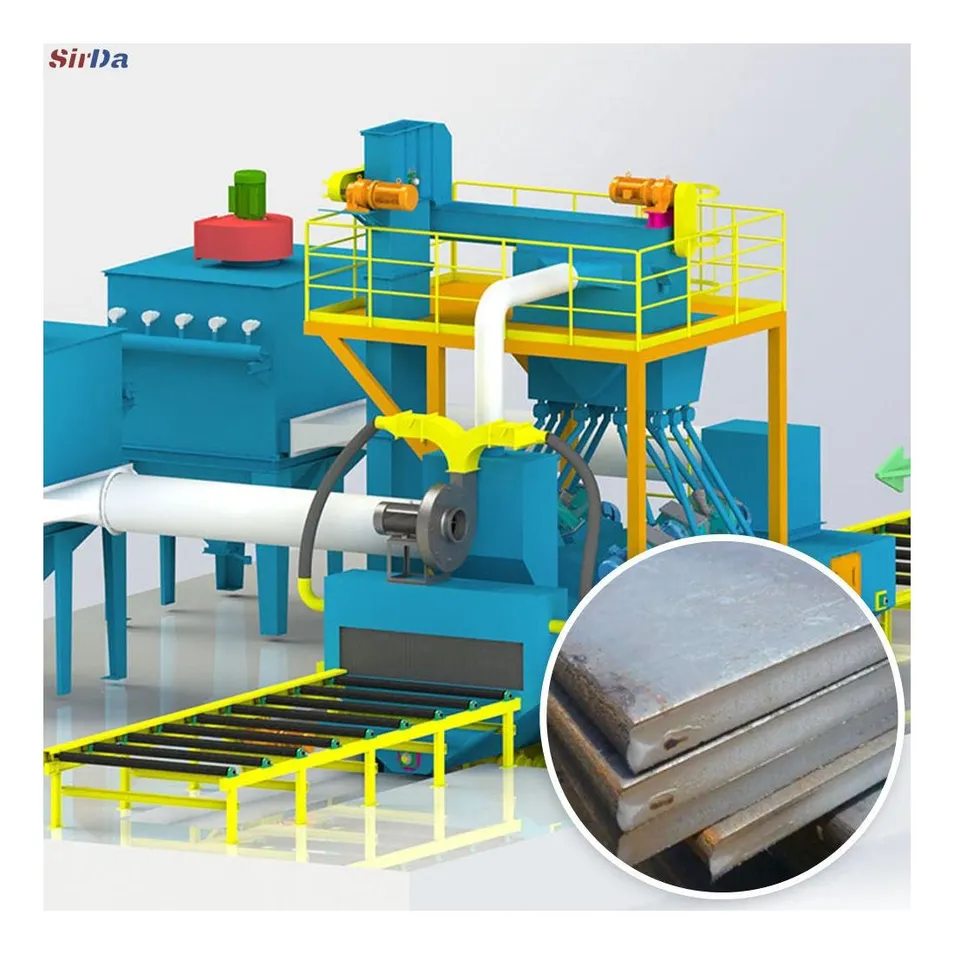

Abrasive Removal Unit
Abrasive Removal Unit

Features a rotating brush and blow-off station. Spent abrasive is collected via a screw conveyor to ensure a clean workpiece surface.

Customizable System
Customizable Design

Non-standard equipment can be designed based on specific steel dimensions. Integration into sawmill or bore production lines is available.

Environmental Protection

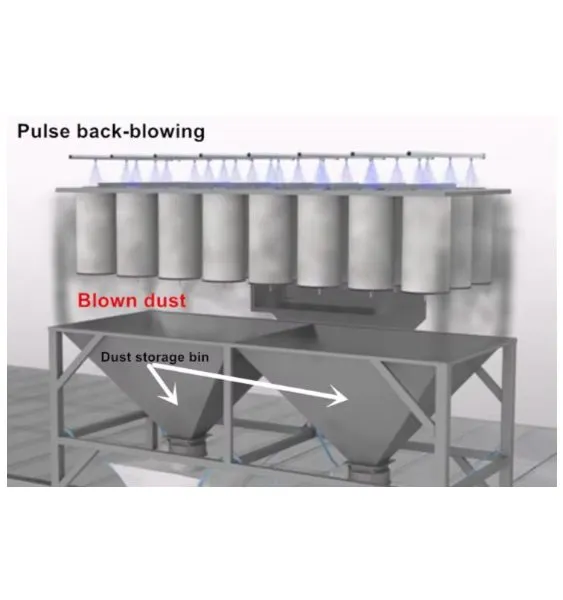

Dust Removal System

High Efficiency Dust Removal:

  • Cartridge dust collectors reduce emissions to 80g/m³.
  • Airflow rate: 26,000 m³/h.
  • Fan Power: 30 kW.
Technical Parameters

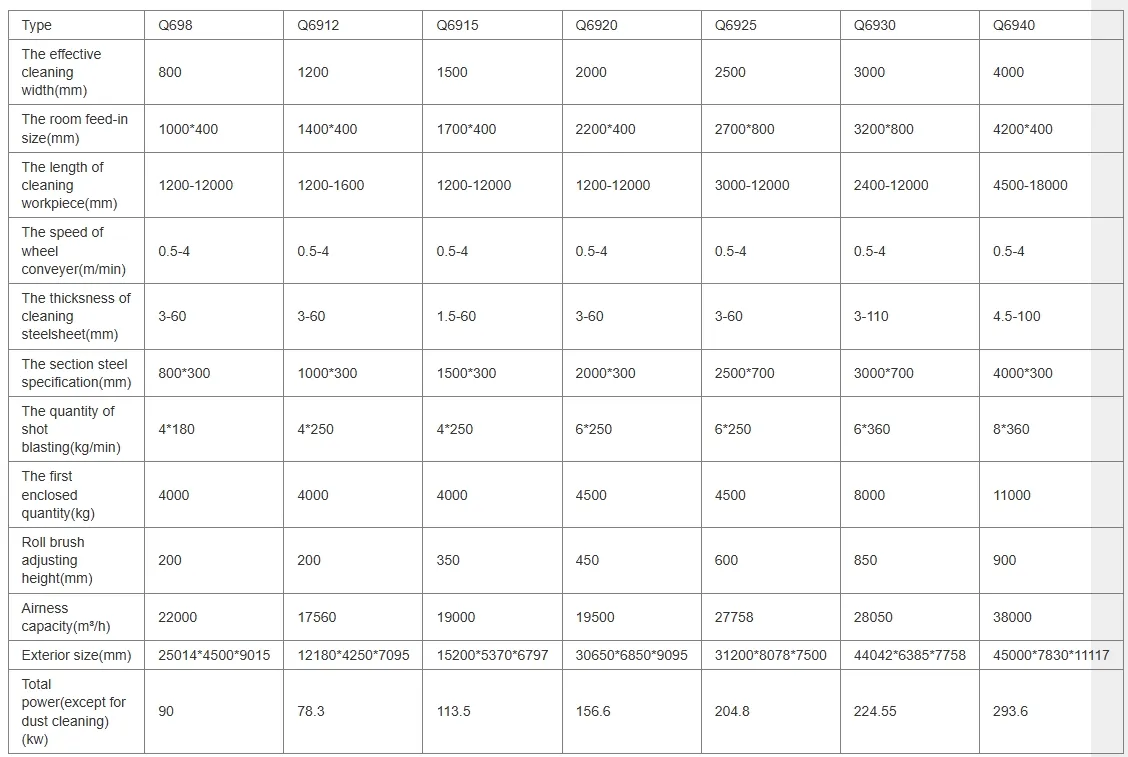

Product Parameters
Certifications
Certification 1
Certification 2
Packaging & Shipping
  • Packaging: 40'HQ container
  • Leading Time: Around 30 days
Packaging Details
Frequently Asked Questions
How long does it take to produce this machine?
Standard machines are often in stock and ready for immediate delivery. Customized designs typically require 30 to 50 days from engineering to completion.
How do you ensure the quality of your machines?
Quality control is prioritized throughout the process. Every machine is fully assembled and undergoes rigorous testing before shipment. We use world-renowned brands for core components.
What is the warranty period for the equipment?
We provide a one-year quality guarantee. During this period, we ensure the machine remains in perfect working condition through high-standard component selection.
Do you provide overseas installation and training?
Yes, we provide overseas commissioning and technician training. Small machines usually take 5 days to set up, while larger systems may take 20 to 60 days depending on complexity.
What documentation is provided with the machine?
We supply comprehensive English documentation, including foundation drawings, operation manuals, electrical wiring diagrams, and maintenance guides.
What after-sales support do you offer?
We provide 12 months of warranty from the date of commissioning and can dispatch technicians to assist with setup and operational training globally.
