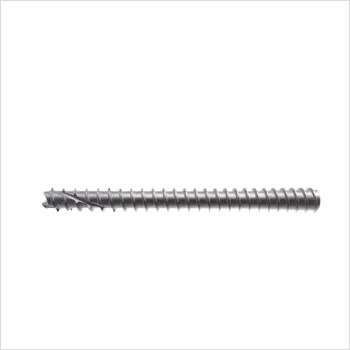

Headless Cannulated Compression Screw with The Material of Titanium
Headless Cannulated Compression Screw with The Material of Titanium
Headless Cannulated Compression Screw with The Material of Titanium
Headless Cannulated Compression Screw with The Material of Titanium
Headless Cannulated Compression Screw with The Material of Titanium
1 / 5
Headless Cannulated Compression Screw with The Material of Titanium
Headless Cannulated Compression Screw with The Material of Titanium
Headless Cannulated Compression Screw with The Material of Titanium
Headless Cannulated Compression Screw with The Material of Titanium
Headless Cannulated Compression Screw with The Material of Titanium

Headless Cannulated Compression Screw with The Material of Titanium

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
TY-LP-421
Condition
New
Usage
Correct Deformities, Fracture Fixation
Type
Bone Fracture Fixation
Properties
Implant Materials & Artificial Organs
Material
Titanium
Application
Orthopedic Surgery
Classification
Class III
Warranty
One Year
After-Sale
Online Technical Support
Package
Sterile Package
Certificate
CE/ISO13485
HS Code
9021100000
Capacity
10000 pieces/Year

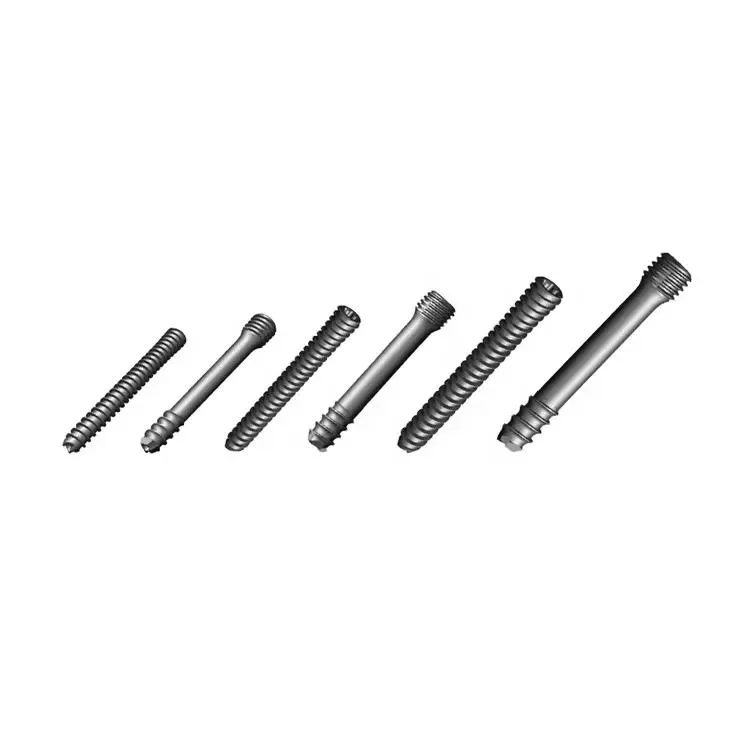

Titanium Screw 1
Titanium Screw 2

Product Description

Screw Illustration
Cannulated Headless Compression Screw
✓
When the screw is implanted, the fracture is well compressed by the thread, which will increase the stability of the fracture.
✓
After insertion, it can keep compressing function under periodic forces.
✓
The thread pitch, which is bigger in the head, varies from the head to the tail, allowing the speed of the screw head into the bone to be faster than the screw tail, forcing the fracture surface together.
✓
Superior performance of the triangular blades makes it easy to implant and remove the screw.
✓
Screw tail embedded in the bone surface reduces the stimulation of the soft tissue.
✓

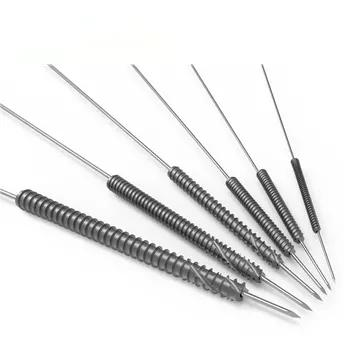

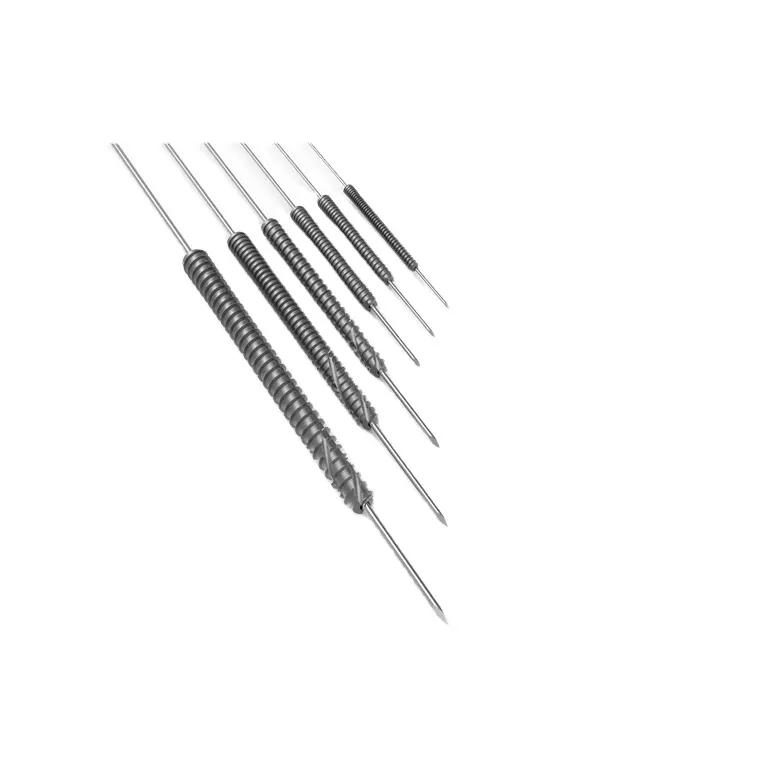

With the guidance of a guide wire, percutaneous implantation is more efficient.
✓
Both the screw head and tail have bilateral edges which reduce the risk of hole cracking during insertion or removal.
Clinical Application

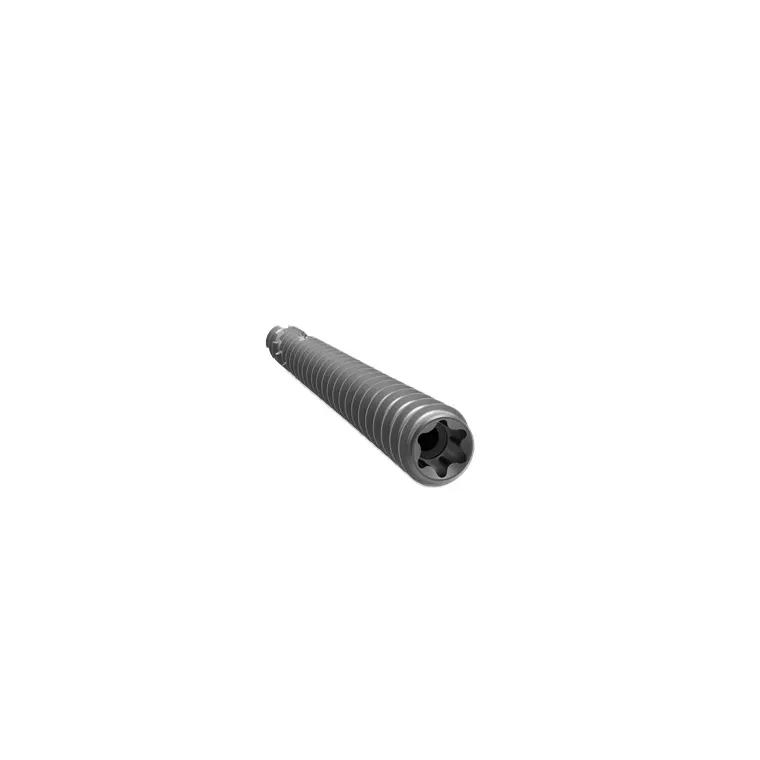

Screw Head Detail

Technical Specifications

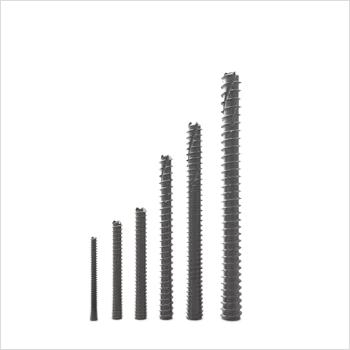

Types Diameter Length
3.0Body 2.5mm / Tail 3.0mm6-14mm (1mm int) / 14-30mm (2mm int)
3.5Body 3.5mm / Tail 3.6mm16-30mm (2mm intervals)
4.0Body 4.0mm / Tail 4.1mm16-34mm (2mm intervals)
4.5Body 4.5mm / Tail 4.7mm20-30mm (2mm) / 30-50mm (5mm)
5.0Body 5.0mm / Tail 5.5mm25-60mm (5mm intervals)
7.3Body 7.0mm / Tail 7.3mm60-120mm (5mm intervals)

*All prices are for reference only. Exact price based on latest quotation.

Product Size 1
Product Size 2
Product Size 3
Product Size 4

Frequently Asked Questions

● What material is used for these compression screws?
The screws are manufactured from high-grade Titanium, ideal for orthopedic implants.
● How does the headless design benefit the patient?
The screw tail can be fully embedded in the bone surface, which significantly reduces the stimulation and irritation of surrounding soft tissue.
● What makes the implantation process efficient?
The use of a guide wire allows for percutaneous implantation, while the triangular blades and variable thread pitch facilitate easy insertion.
● Are there multiple sizes available for different fractures?
Yes, we provide a wide range of types from 3.0 to 7.3, with varying lengths to accommodate different surgical requirements.
● Does the product come with any certifications?
Yes, the product is certified under CE and ISO13485 standards for Class III medical instruments.
● What is the warranty period for this medical device?
We provide a one-year warranty along with online technical support for after-sale service.
