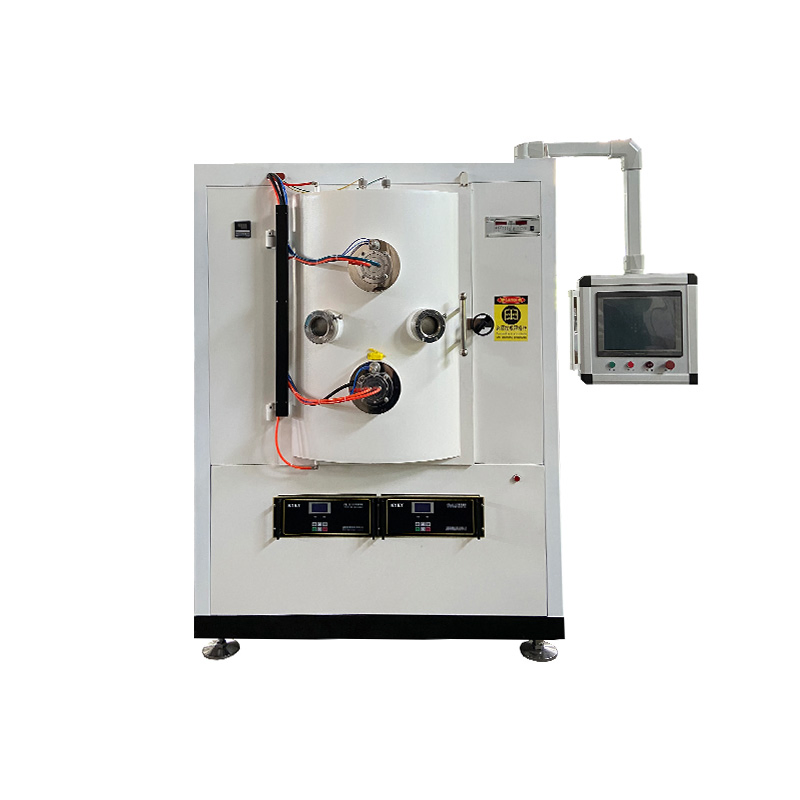

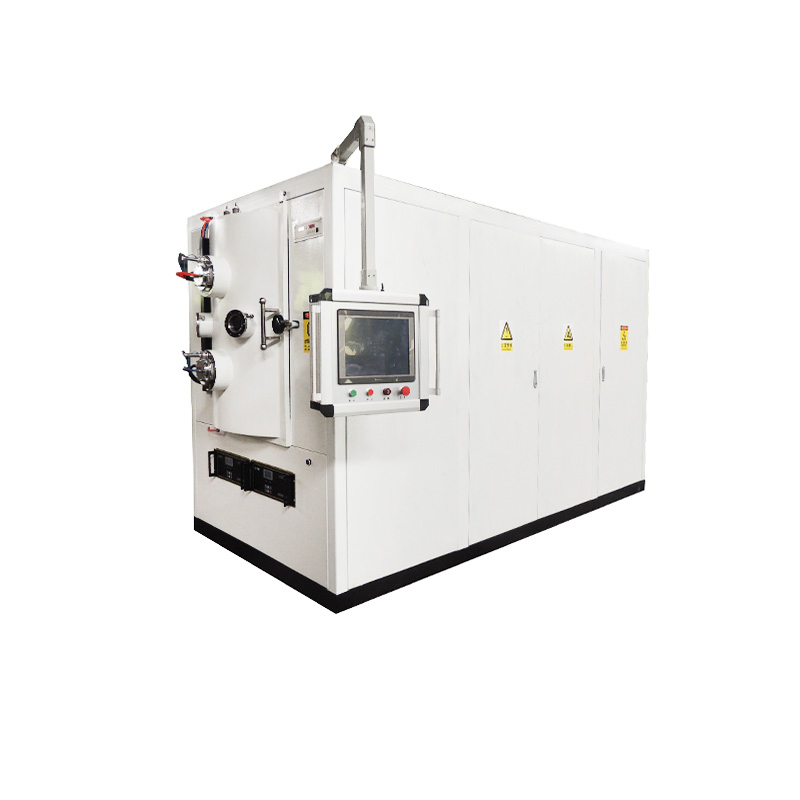

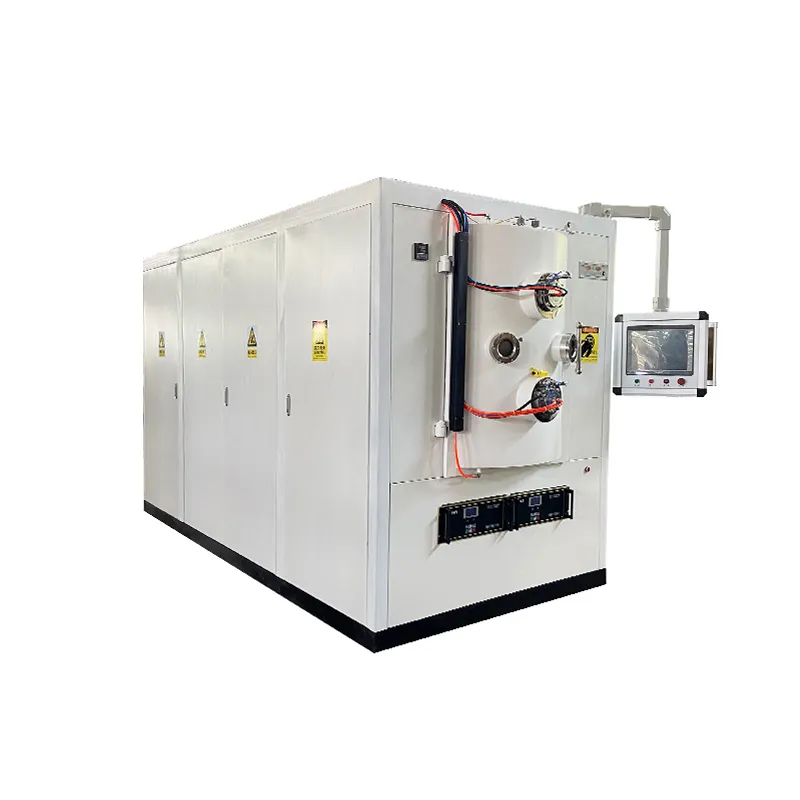

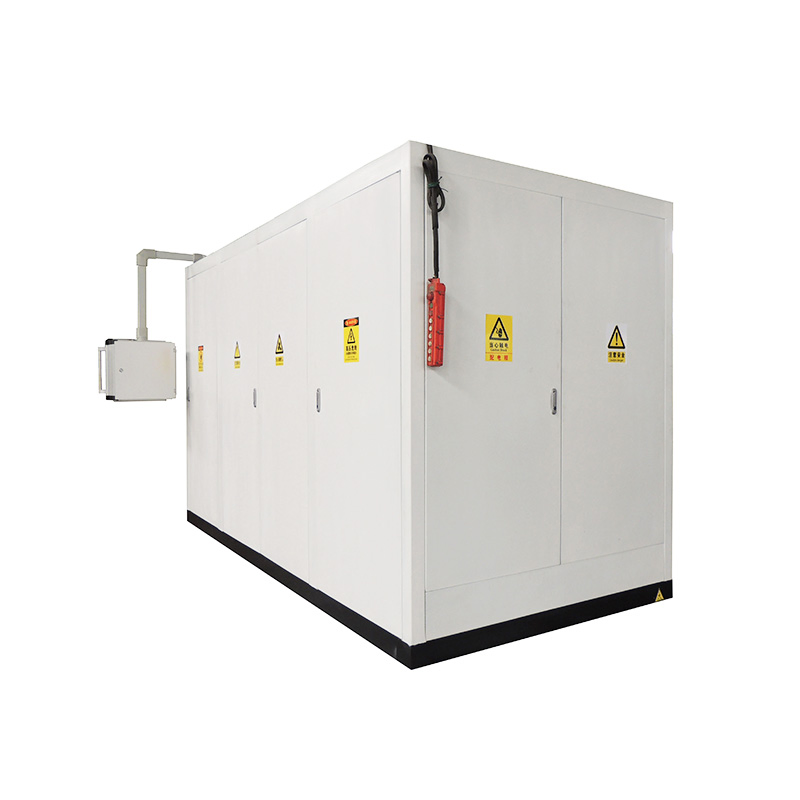

PVD Multi-Arc Ion Plating System
The Titanium Nitride Coating Equipment is a high-tech environmental friendly product designed for metal, glass, and surface coating. Implementing this machinery significantly improves workpiece hardness, wear resistance, and overall durability.
Based on advanced arc deposition technology, the ARC series is the most suitable coating system for producing PVD hard coatings on metal tools, molds, dies, and decorative items.
| Model | ARC Series |
|---|---|
| Vacuum Chamber | SUS304, φ600mm-1200×600-1200mm (H) |
| Substrate Dome Rotation | 10 rpm to 50 rpm (Variable) |
| Arc Evaporation Source | 2 to 16 sets |
| Ultimate Pressure | 5.0×10⁻⁴ Pa or lower |
| Pump Down Rate | 25 minutes (Atm. to 5.0×10⁻³ Pa) |
| Substrate Heater | Up to 550°C (max.) |
| Layout Dimensions | Approx. 5000mm (W) × 6500mm (D) × 3500mm (H) |
|---|---|
| Power Requirements | 3-phase, 380V, 50/60Hz, 100-180kVA approx. |
| Compressed Air Pressure | 0.5MPa or higher |
| Gross Weight | Approx. 8500kg |
Applicable industries include the watch industry (straps, cases), glass ceramics (tableware, crafts), hardware (sanitary ware, locks), architecture (stainless steel plates, railings), and precision molds (forming molds, carbide cutters).
