Hospital Equipment Sports Medicine Orthopedic Instrument Set Suture Anchor

1 / 5

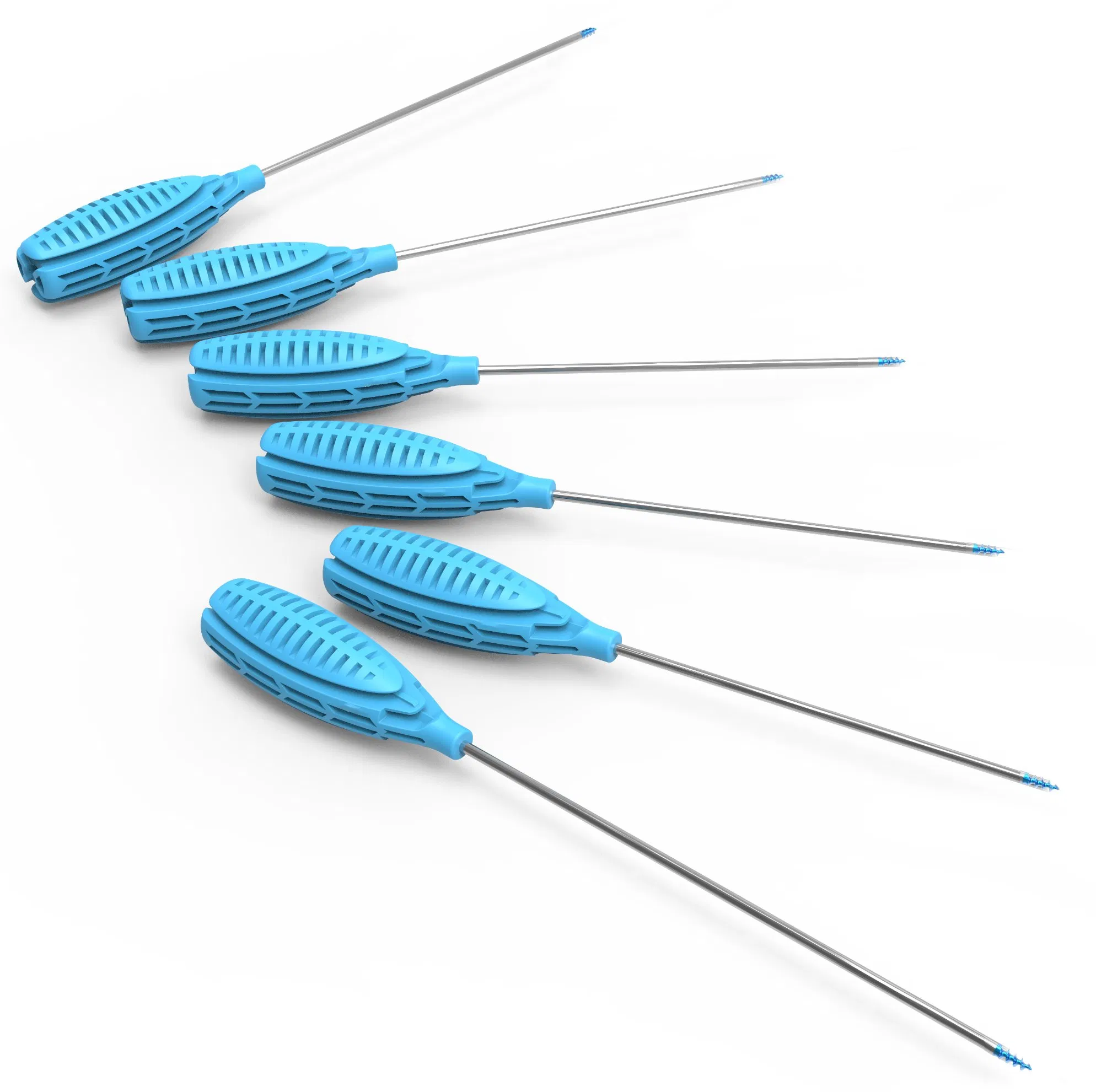

Hospital Equipment Sports Medicine Orthopedic Instrument Set Suture Anchor

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

TY-SA

Material

Steel

Feature

Reusable

Certification

CE, ISO13485

Instrument Class

Class II

Warranty

1 Year

Package

Sterile Package

Frequency

10000-12000 times/Min

Origin

China

HS Code

9021100000

Product Description

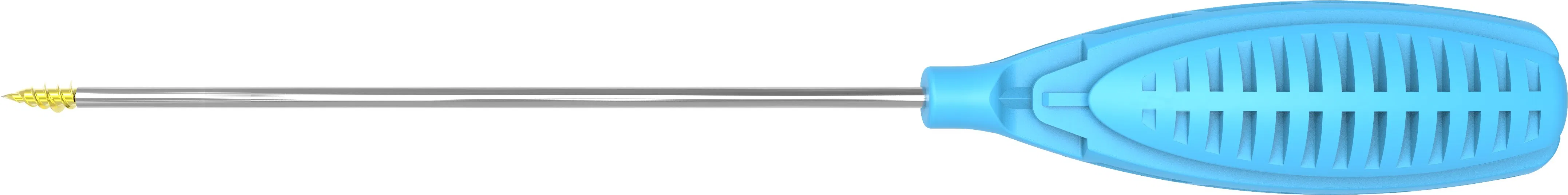

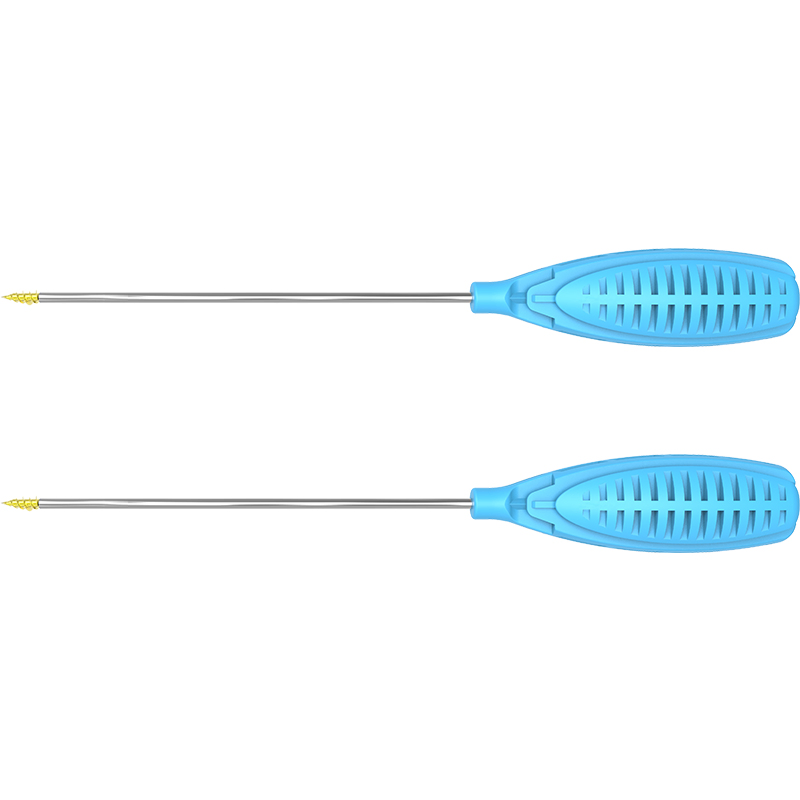

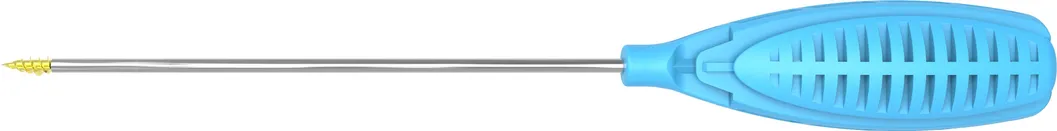

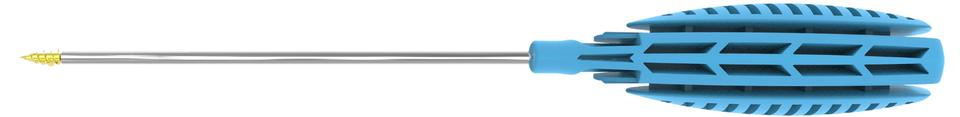

A suture anchor is a precision-engineered medical implant designed to fix sutures into the bone, effectively reconnecting soft tissue and bone structures. This fully threaded anchor features centralized suture holes, offering maximum flexibility for surgeons during working suture placement. The design optimizes the surgical process by reducing the necessity for extensive bone removal during guide hole creation without compromising the essential pullout strength.

Product Specifications

Model	Anchor Details (mm)			Suture
Model	External Diameter	Anchor Length	Total Length	Specification
T20-φ2.0x7.5	φ2.0	7.5	184.3	2 0# sutures
T12-φ2.8x11.5	φ2.8	11.5	251.4	1 2# suture
T22-φ3.5x12	φ3.5	12	255.2	2 2# sutures
T22-φ5.0x15.5	φ5.0	15.5	257.5	2 2# sutures
T22-φ6.5x16.3	φ6.5	16.3	260.7	2 2# sutures

Key Advantages

Hexagon Drive System

Ensures easy operation and multi-angle implantation. Provides flexibility to be implanted twice during a single operation if necessary.

Head Edge Design

Specially designed suture hole edges on the anchor head significantly reduce friction during surgery, protecting the integrity of the suture.

Titanium Alloy Material

Constructed from high-grade titanium alloy, providing excellent biocompatibility for long-term safety in the human body.

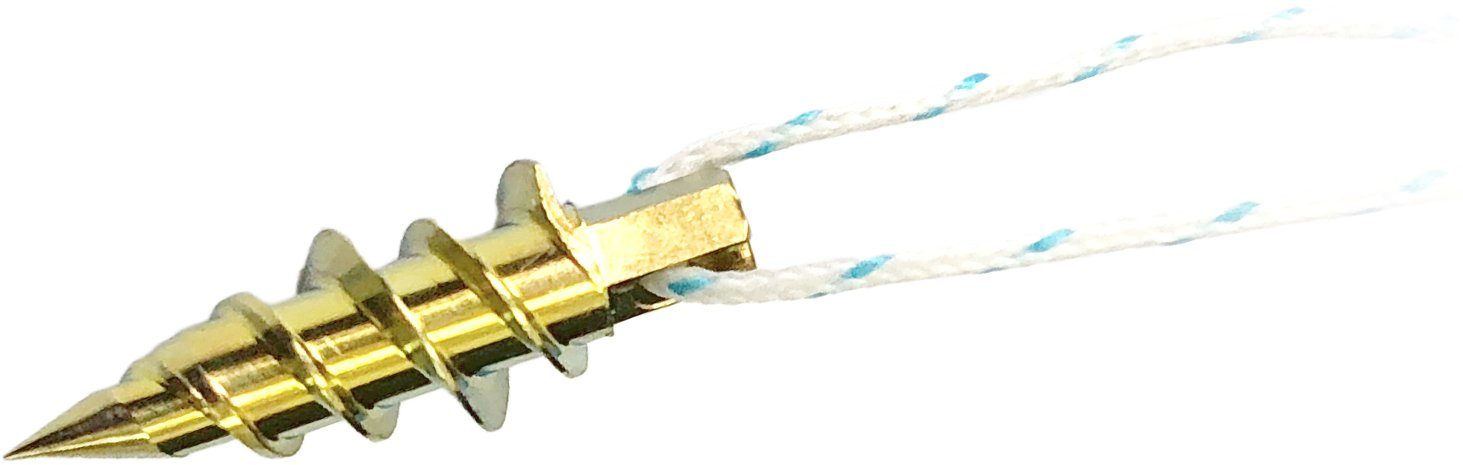

Sharp Anchor Head

The sharp design eliminates the need for pre-drilling in many cases, making the implantation process faster and easier.

Double Thread Design

Features high and low double threads for stronger torsional strength, superior pull-out resistance, and shorter operation time.

Medical Tips

Scope of Use: Suture Anchors are vital surgical implants used for attaching soft tissues (such as ruptured tendons and ligaments) to bone. They consist of the anchor body, the suture, and the "eyelet" interface.

Composition Characteristics: The sutures are crafted from ultra-high molecular weight polyethylene and polyester composite braid. This combination ensures superior mechanical properties, a better tactile feel, and more convenient handling for the surgical team.

Frequently Asked Questions

1. What is the guarantee period for these medical instruments?

We offer a one-month exchange guarantee for quality issues and a one-year free repair service. Lifetime maintenance support is also provided.

2. Does the suture anchor require pre-drilling?

Thanks to the sharp anchor head design, these anchors can often be implanted directly without the need for pre-drilling, simplifying the surgical procedure.

3. What materials are the sutures made of?

The sutures are made of a high-performance composite braid of ultra-high molecular weight polyethylene and polyester for maximum strength.

4. How does the double thread design improve performance?

The high and low double thread design provides stronger torsional strength and significantly higher pull-out resistance compared to standard threads.

5. Are the products certified for medical use?

Yes, the products are manufactured according to CE and ISO13485 standards, classified as Class II medical instruments.

6. Can the anchor be repositioned during surgery?

The hexagon drive system allows for multi-angle implantation and provides the flexibility to be implanted twice during the operation if adjustment is required.
