Lateral Decubitus Position Shoulder Arthroscopy Positioning

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
HE-KTT
Certification
ISO13485, ISO
Group
Adult
LCD Display
Without LCD Display
MOQ
1 Set
Keywords
Shoulder Traction Frame
C Arm Compatible
Yes
Material
Stainless Steel
Loading Capacity
150kg
Packing
Wooden Case
Warranty
1 Year
Application
Hospital
Production Capacity
5000 Pieces/Month
Product Description

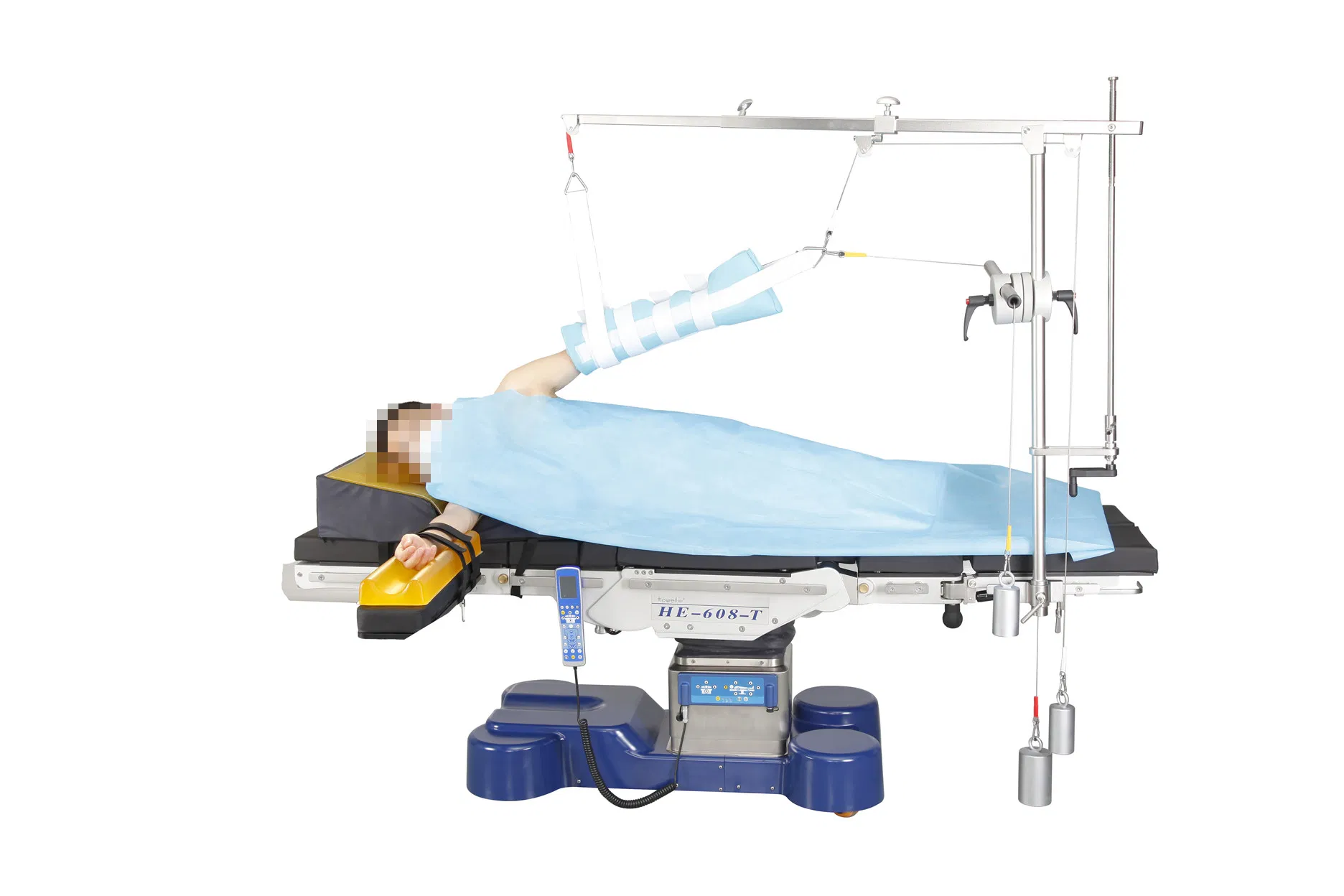

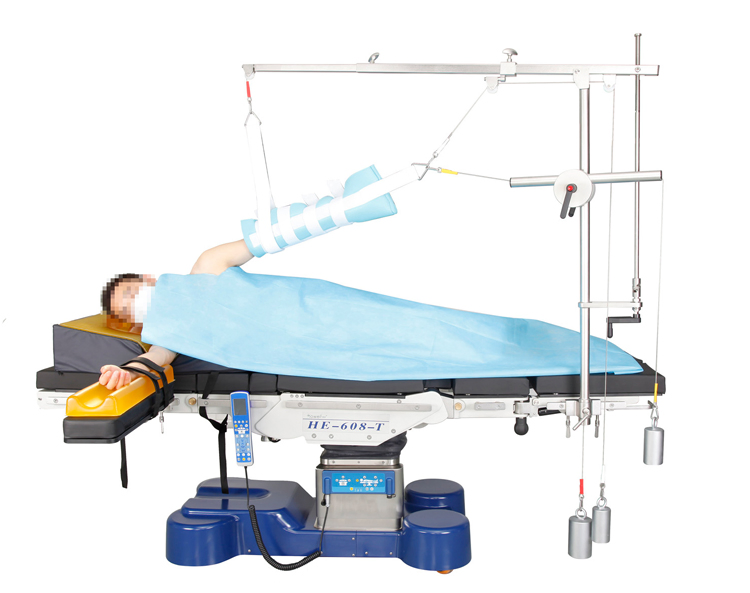

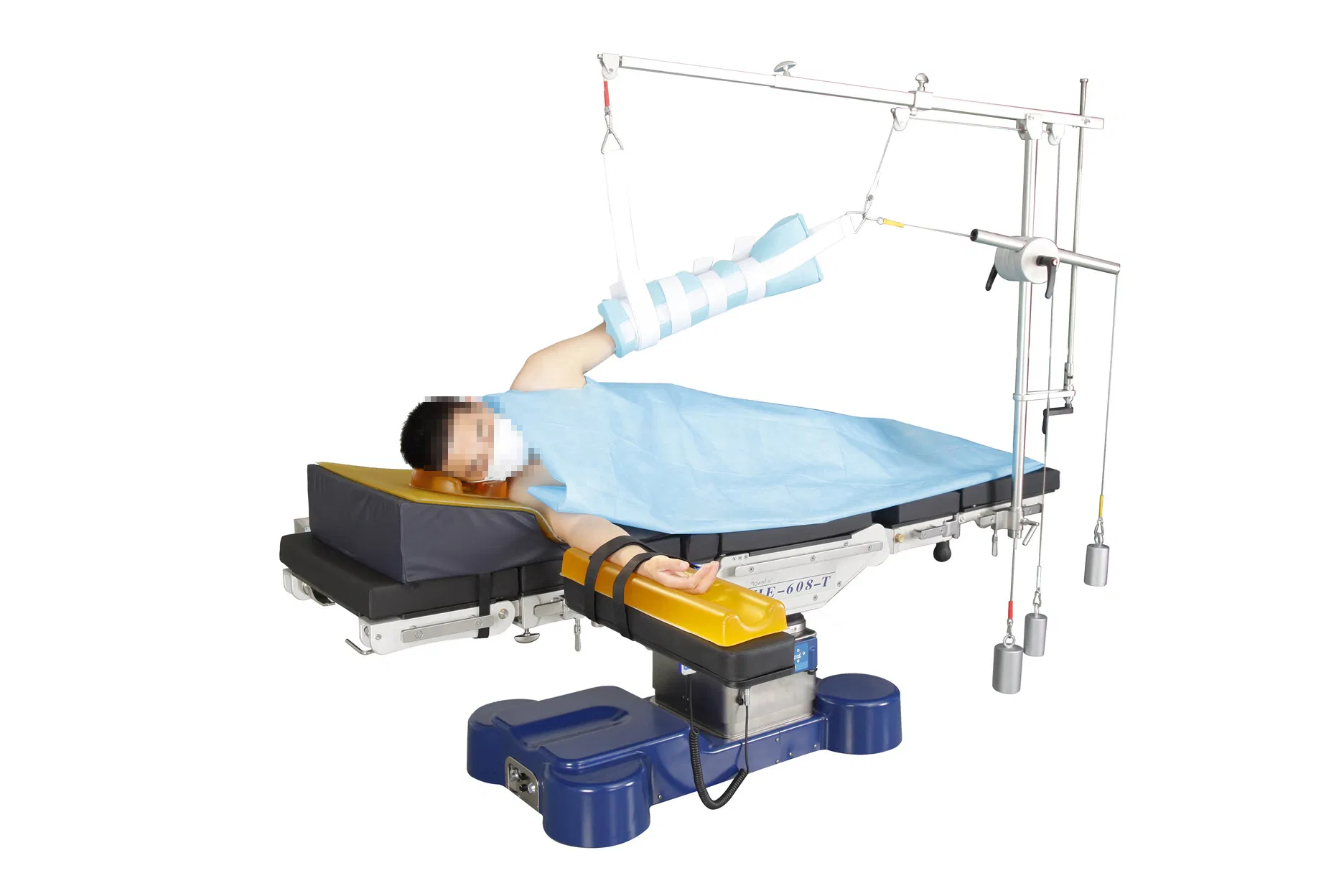

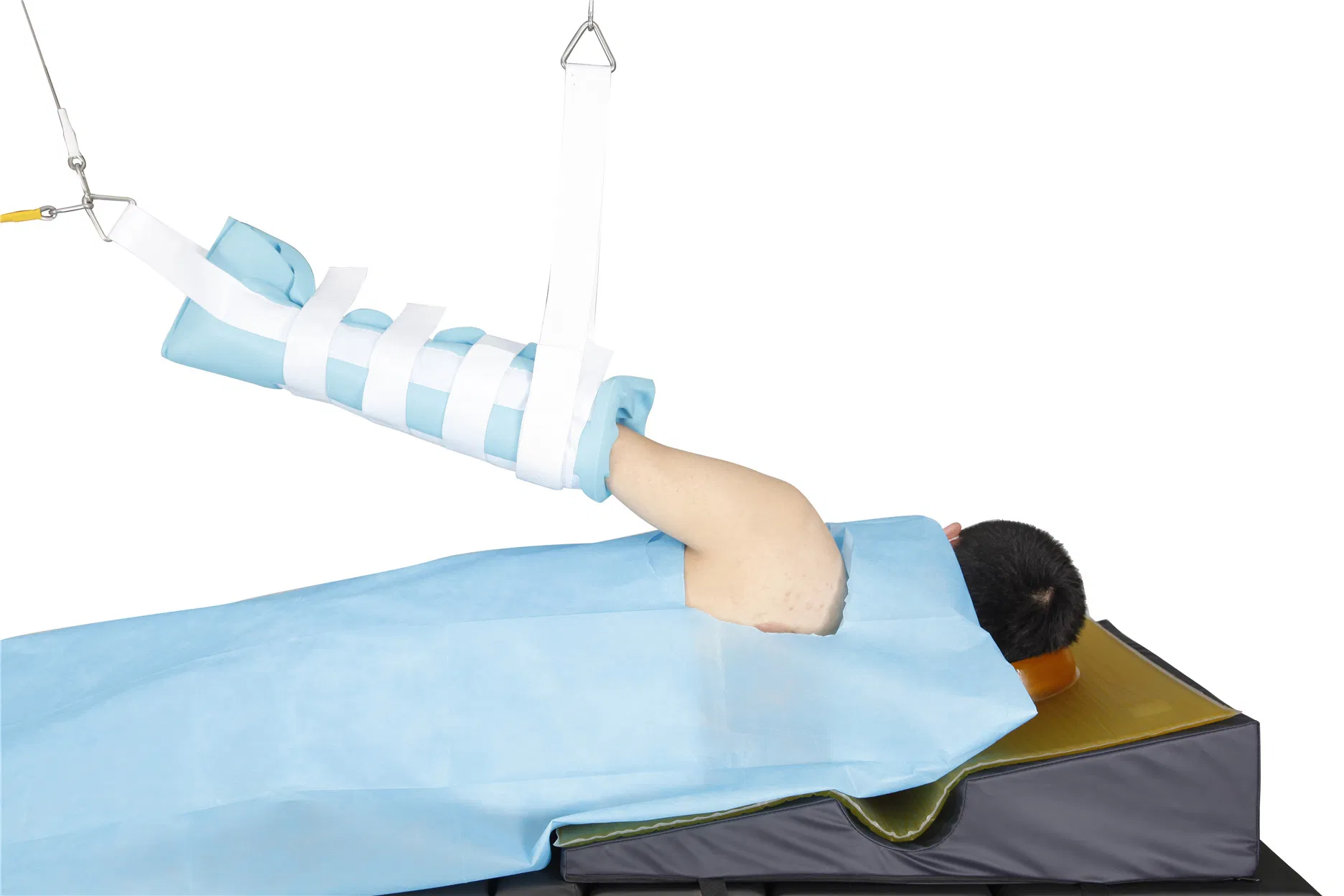

Lateral Decubitus Position Shoulder Arthroscopy Positioning

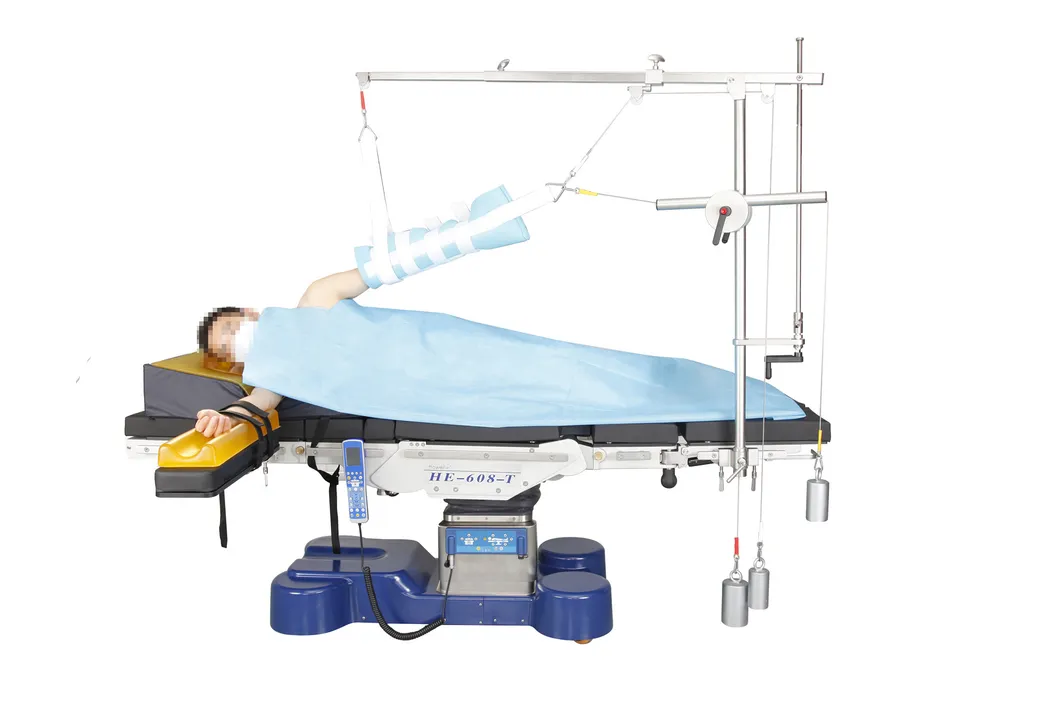

Shoulder Arthroscopy positioning
1
Shoulder joint traction frame is a product specially designed for shoulder arthroscopy surgery, completing the procedure by pulling the arm.
2
Mainly used for shoulder arthroscopic surgery, muscle tearing, and elbow-wrist traction with a simple structure for convenient operation.
3
The traction system utilizes a tension adjustment wheel to obtain precise and maximum traction.
4
Adjustable traction force based on patient requirements. Equipped with three hanging rings to change force size, angle, and height easily.
5
The frame is safe, stable, and highly adjustable (up/down, left/right) with a 180° rotation capability in one direction.
6

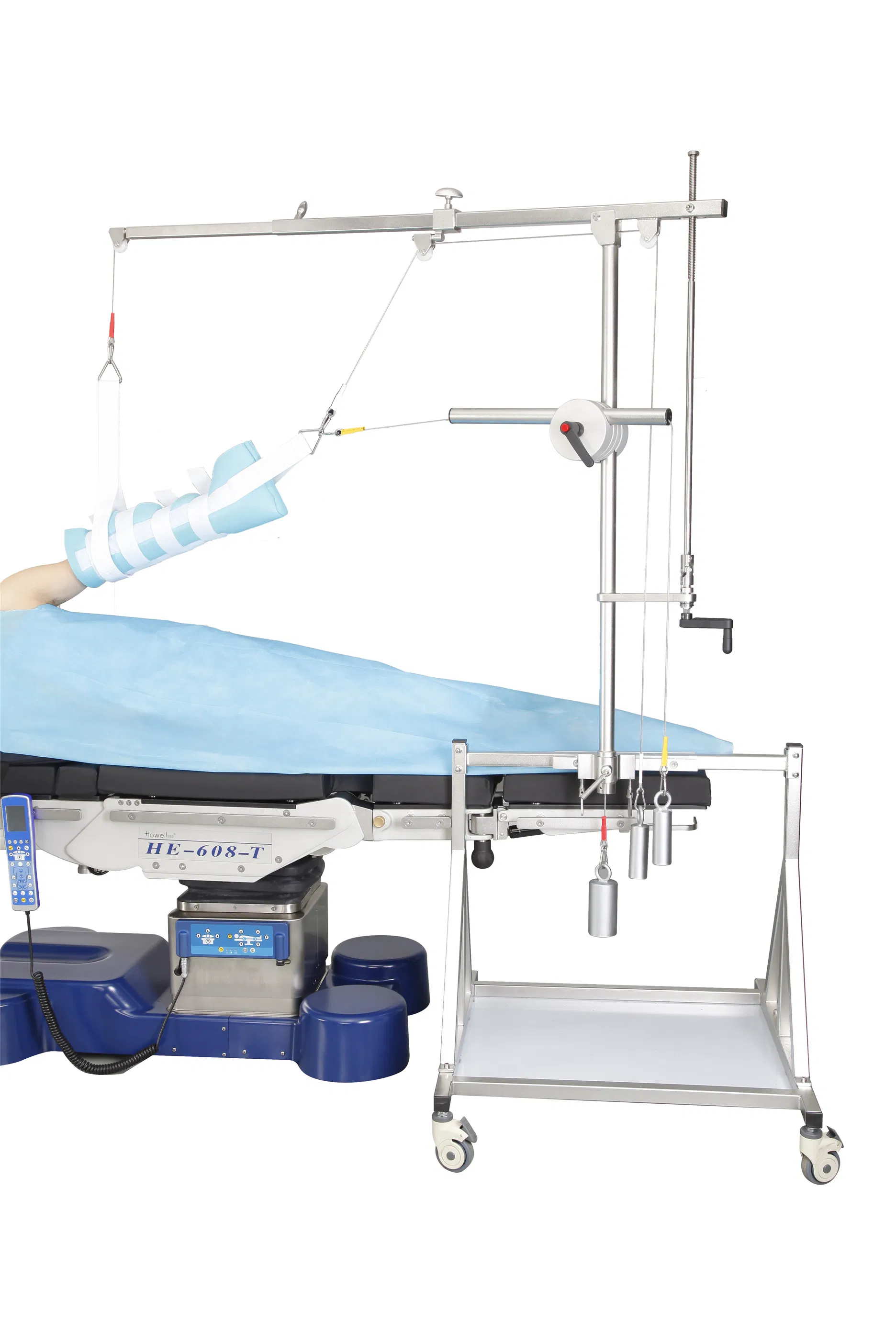

Installs on the edge rail of the operating table to pull the patient's arm diagonally in the lateral position.
7
Includes a movable trolley; the main body is foldable for easy storage.
Technical Specifications
Feature Parameters
Length and Width1300*1100mm
Traction arm adjust range750-1250mm
Traction arm up/down adjust angle±20°
Traction pull line bearing tension750N
Round rotating device adjust angle±60°
Side rail locking install sizeCustomized
Instrument cart sizeL 750*W730*H770mm
Detailed Photos

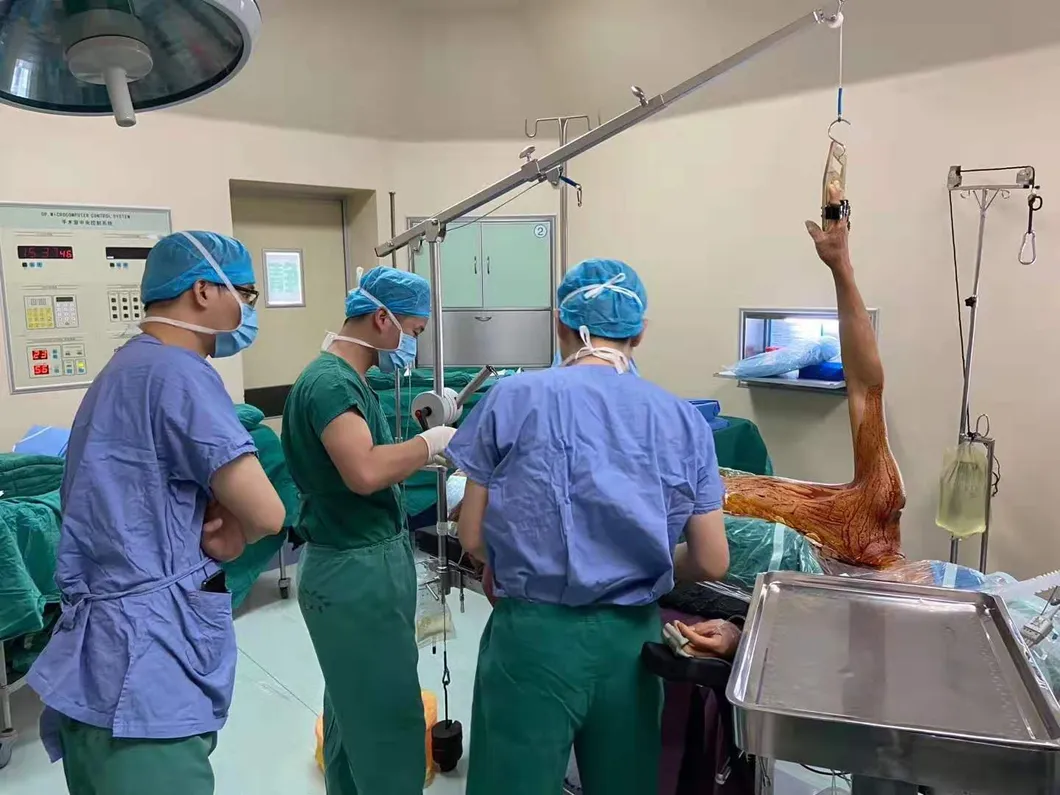

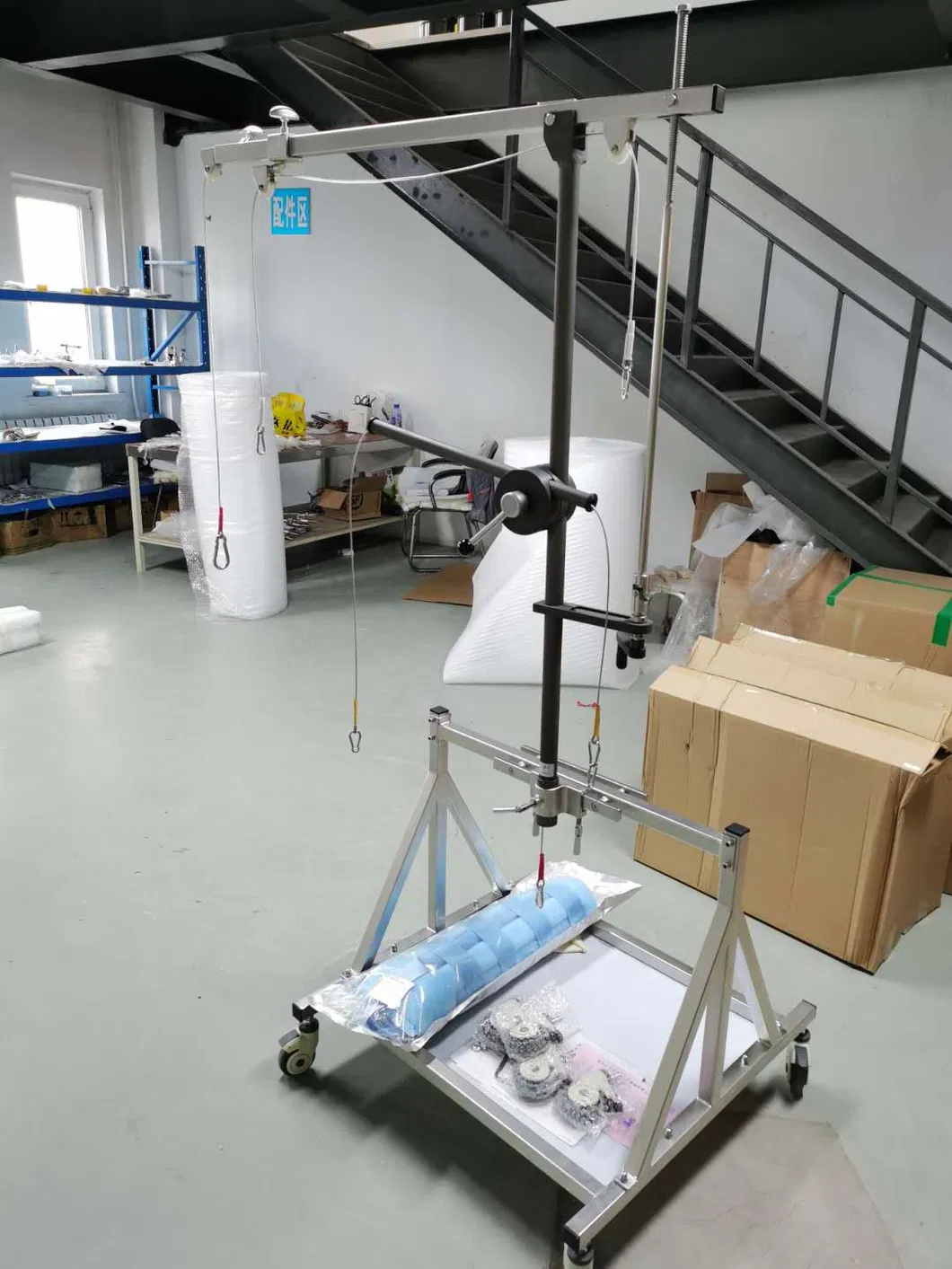

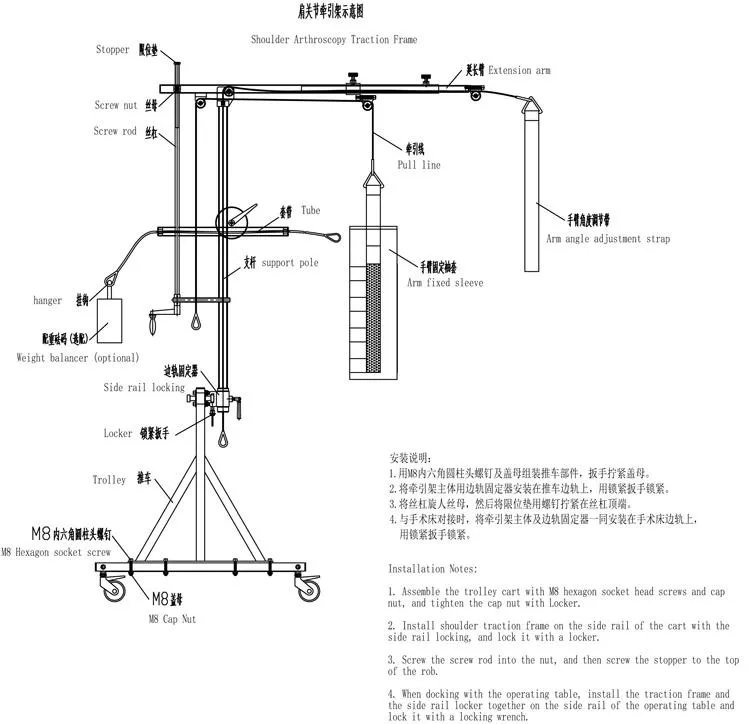

Detailed Photo 1 Detailed Photo 2 Detailed Photo 3
Quality & Certifications
Production Workflow Manufacturing Facility
Certifications & Packing
Certification Packing
