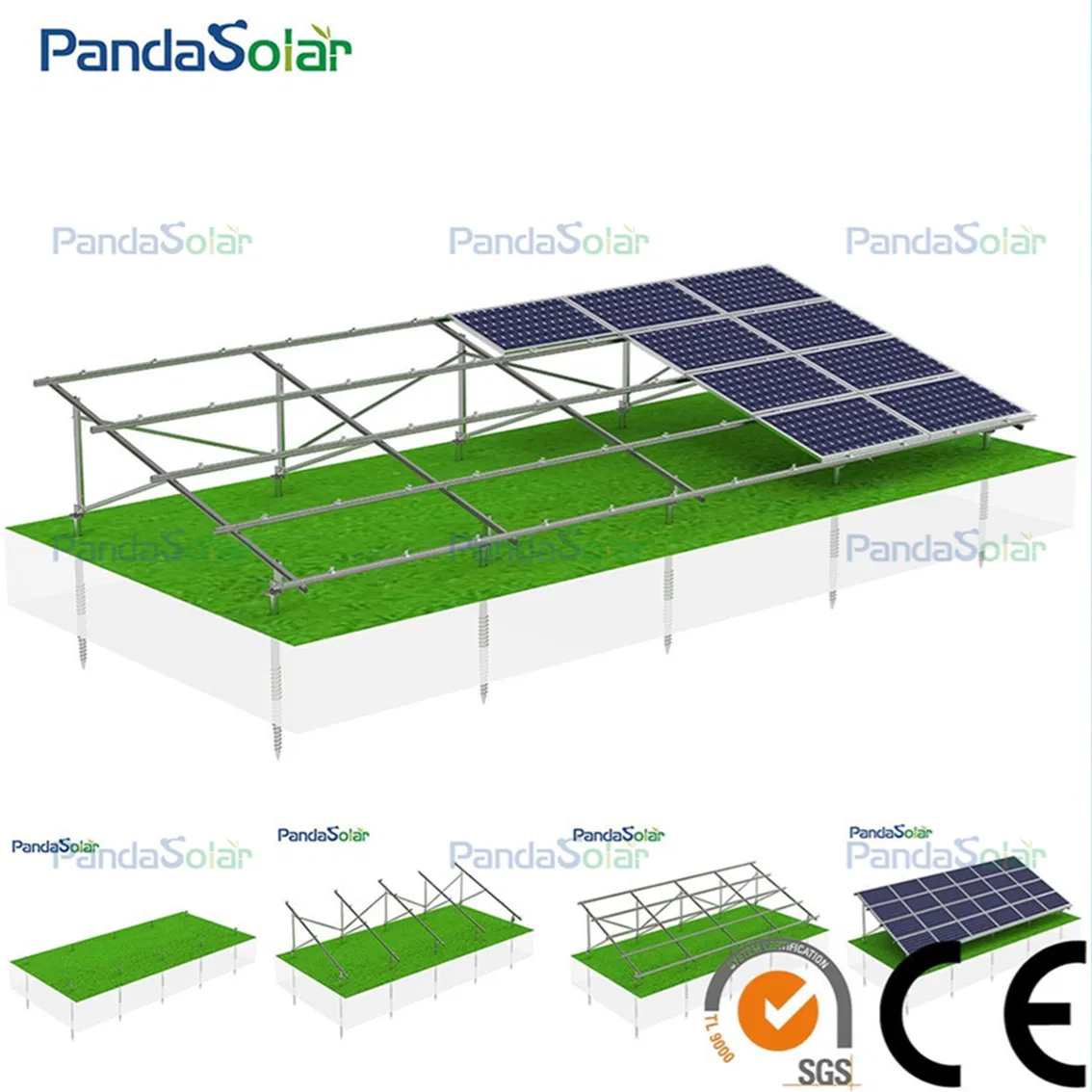

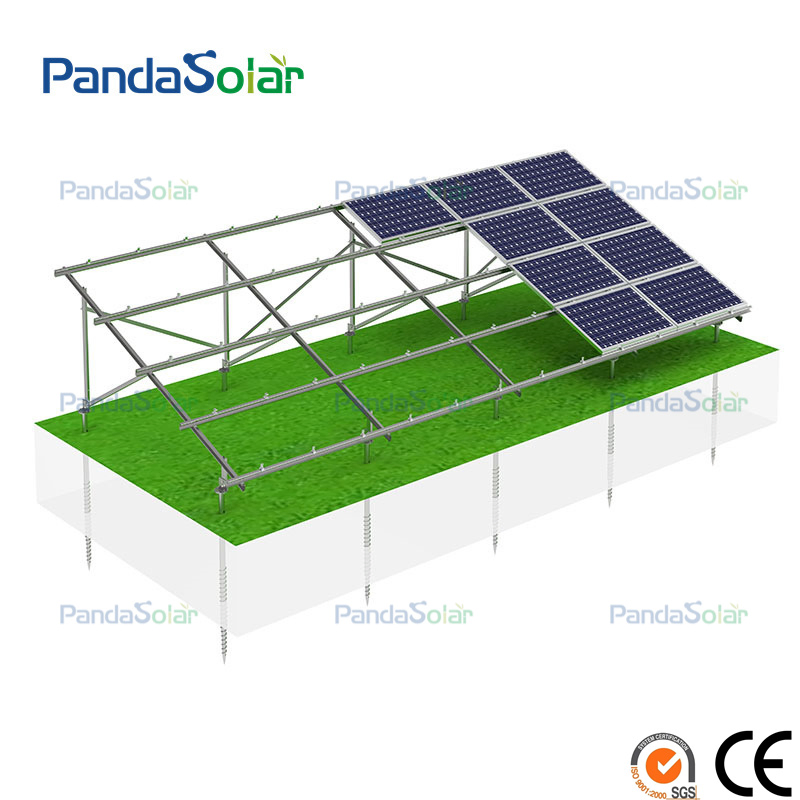

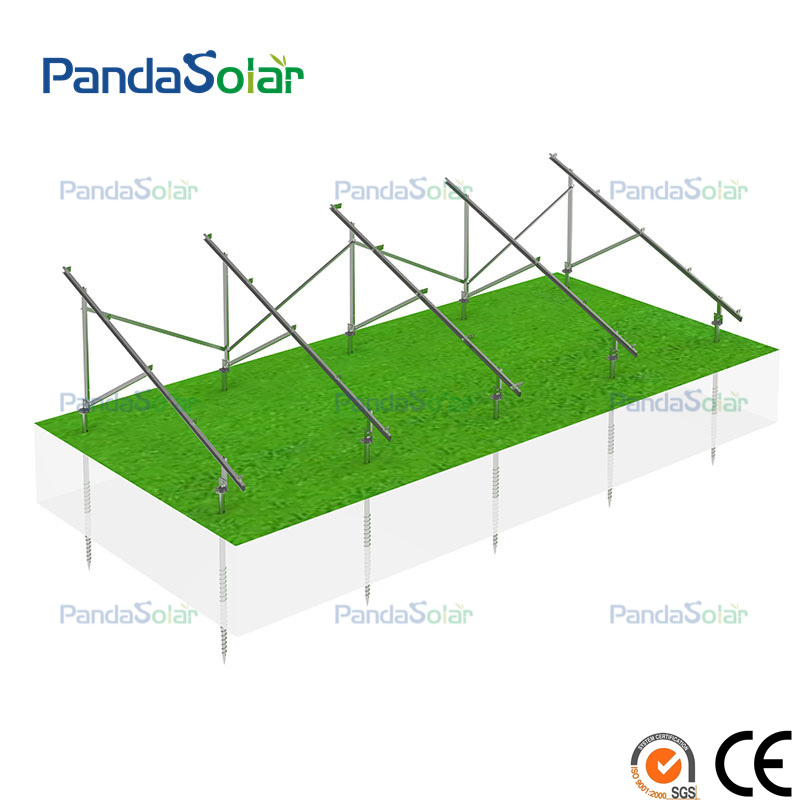

This Magnesium Aluminum Zinc Ground Mounting System is strictly designed according to maximum wind speed, snow load, and solar panel specifications. While ensuring structural integrity, the system focuses on installation efficiency and labor cost reduction. Built for long-term service life, the system supports various foundations including ground screws, piling columns, and cement piers.

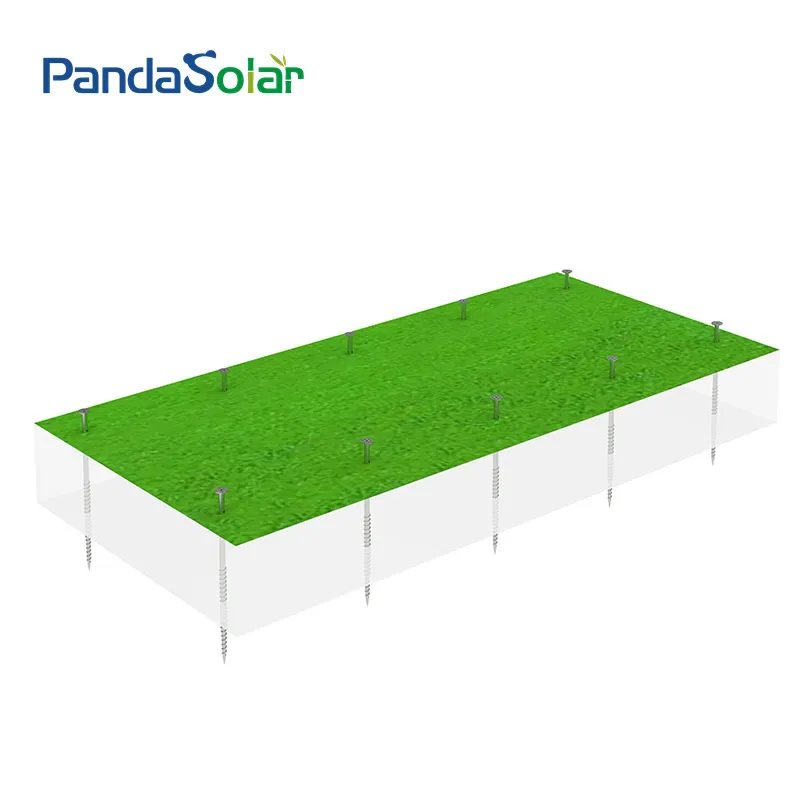

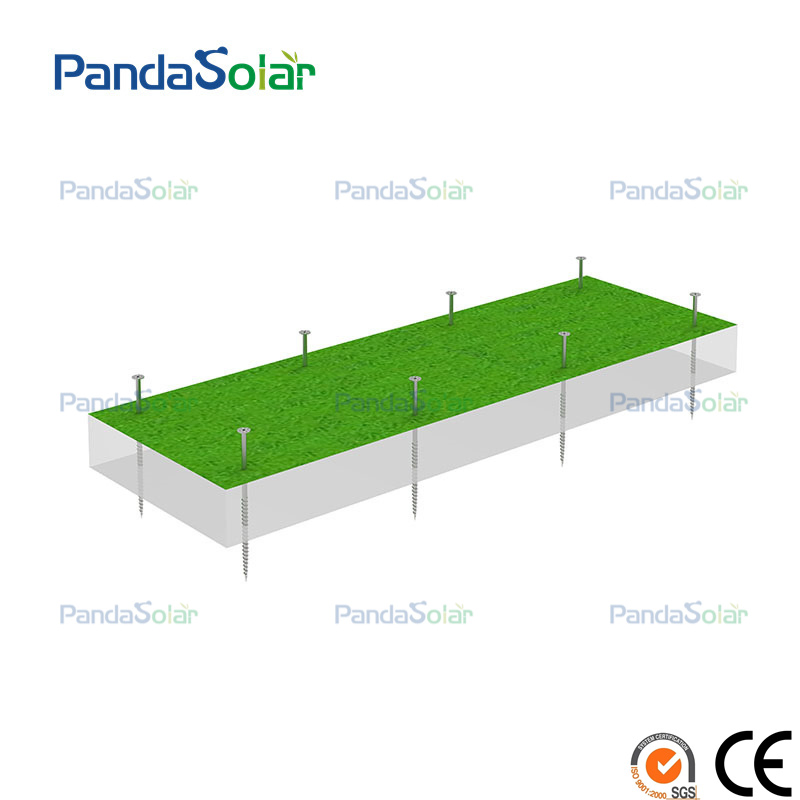

The first step is anchoring the support structure. Specialized equipment drills these screws into the soil at depths sufficient to hold the system's total weight based on soil type.

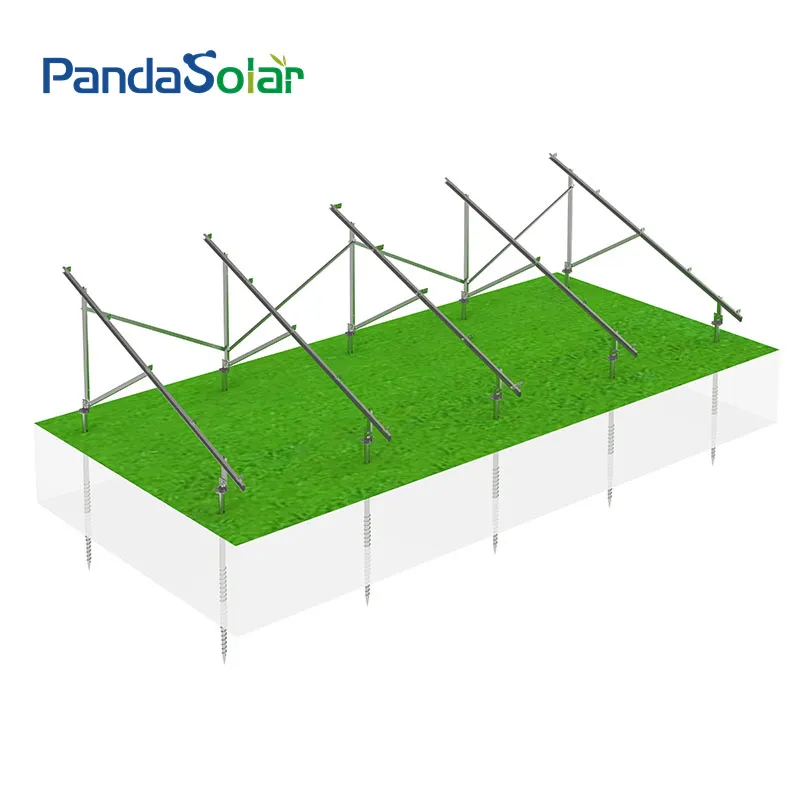

Connect the diagonal support poles to the main vertical poles using high-strength bolts and nuts to create the primary structural framework.

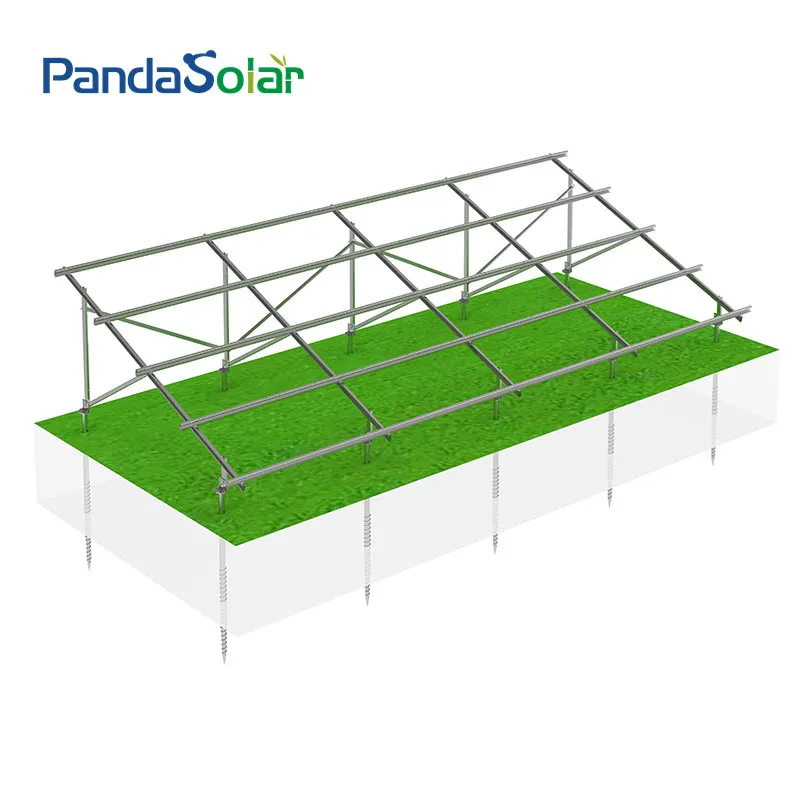

Attach the rails that support the solar panels to the beams using specialized brackets. Ensure the rails are perfectly level before proceeding.

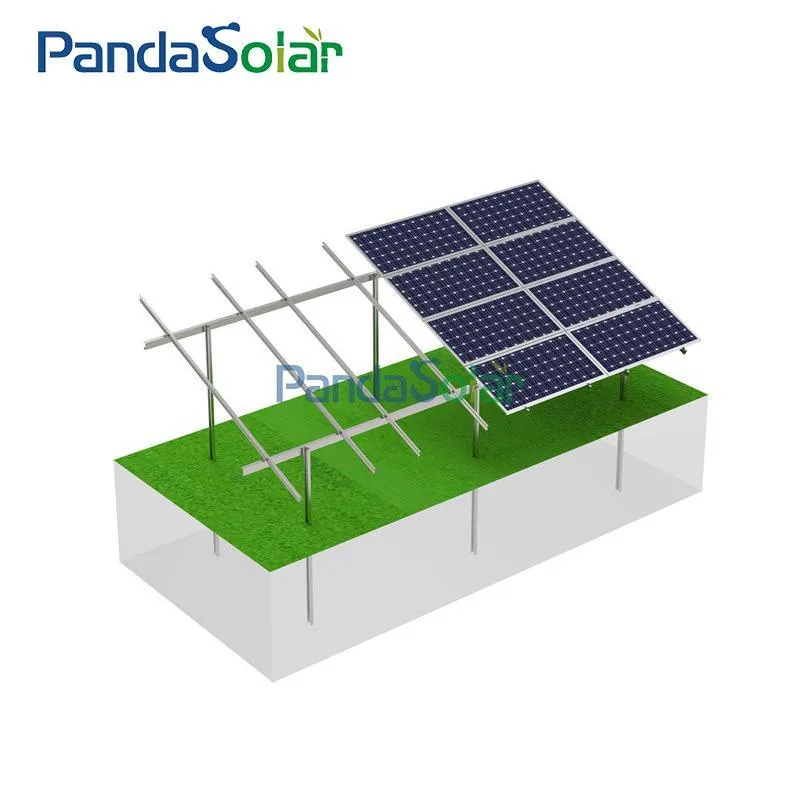

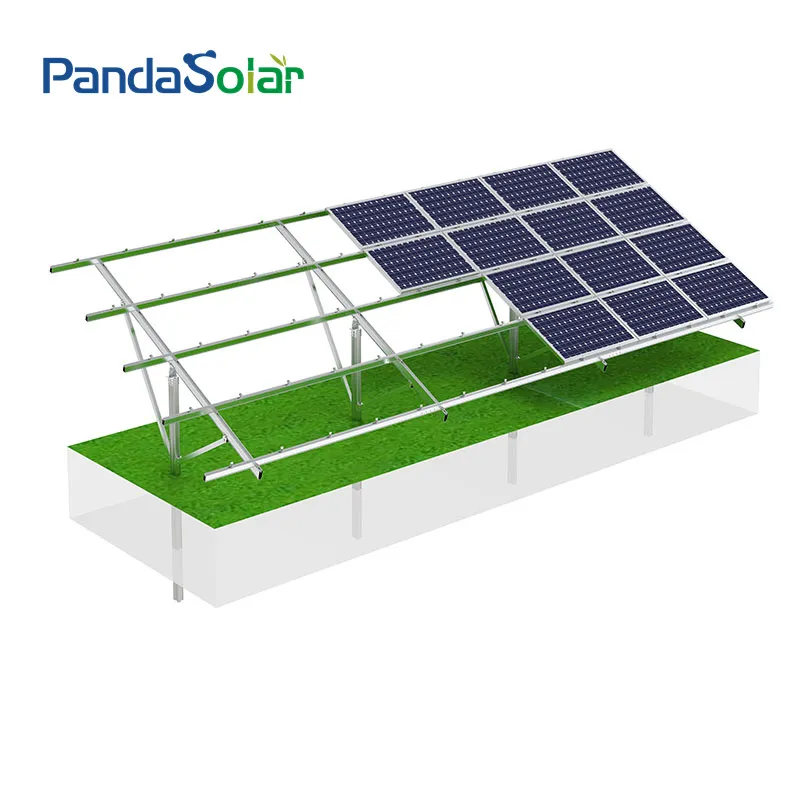

Securely fasten each solar panel to the rails using industrial-grade mounting hardware for a permanent, weather-resistant finish.
| Feature | Specifications |
|---|---|
| Material | Structure: Mg-Al-Zn & AL-6005-T5; Components: SUS304 & AI6005-5 |
| Application | Commercial and Residential ground installations |
| Tilt Angle | 0 - 60° |
| Wind Speed | Up to 60 m/s |
| Snow Load | 0 - 150 cm |
| Ground Clearance | 0 - 1 m |
| Design Standard | AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009 |
| Warranty | 12 Years |

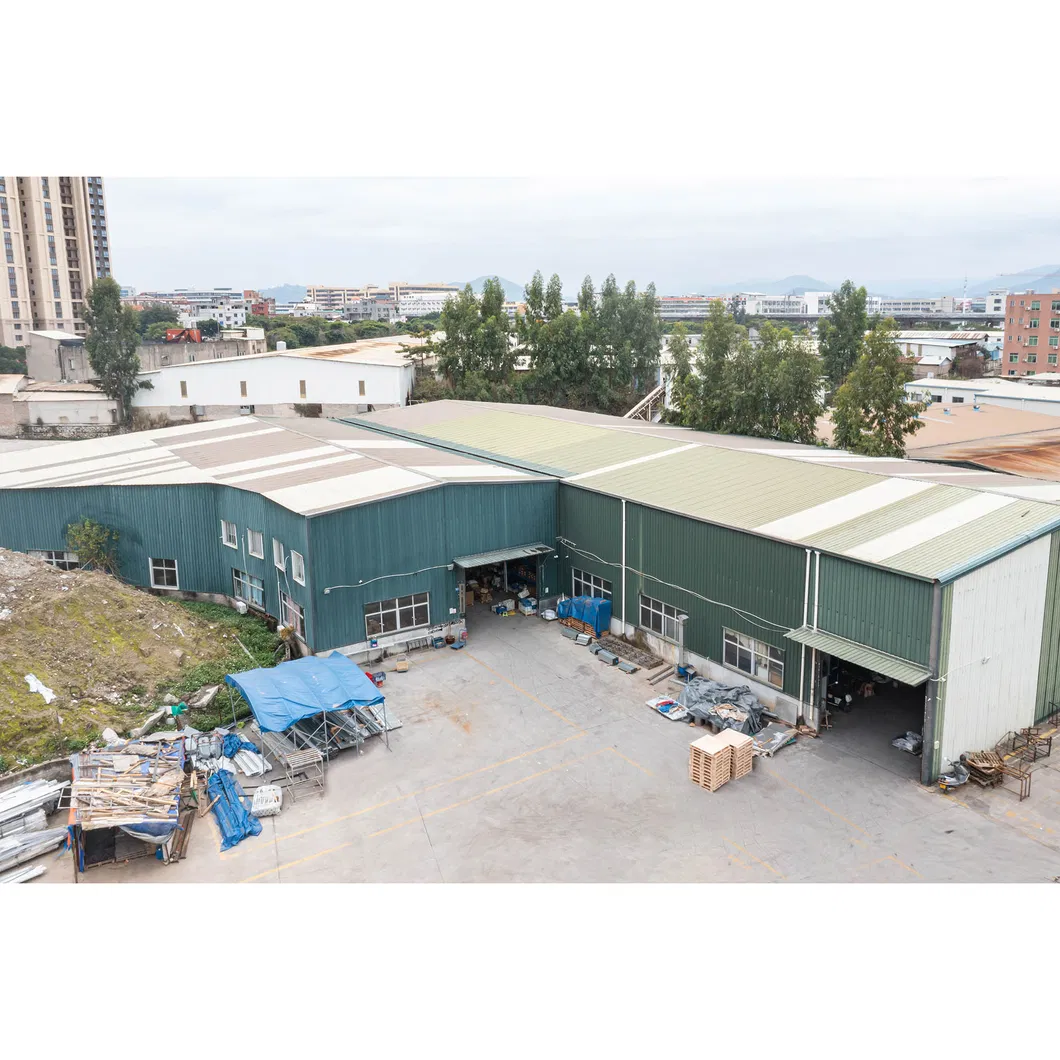

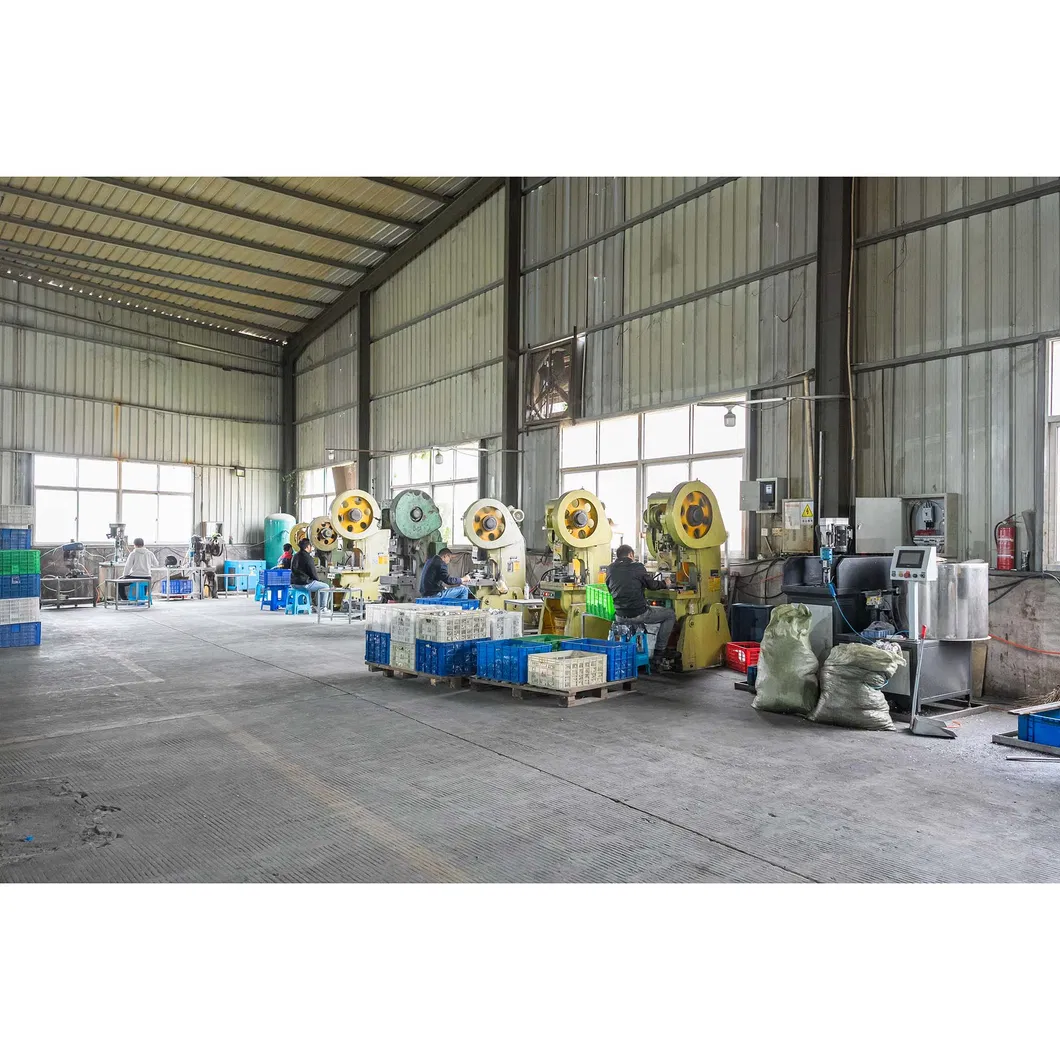

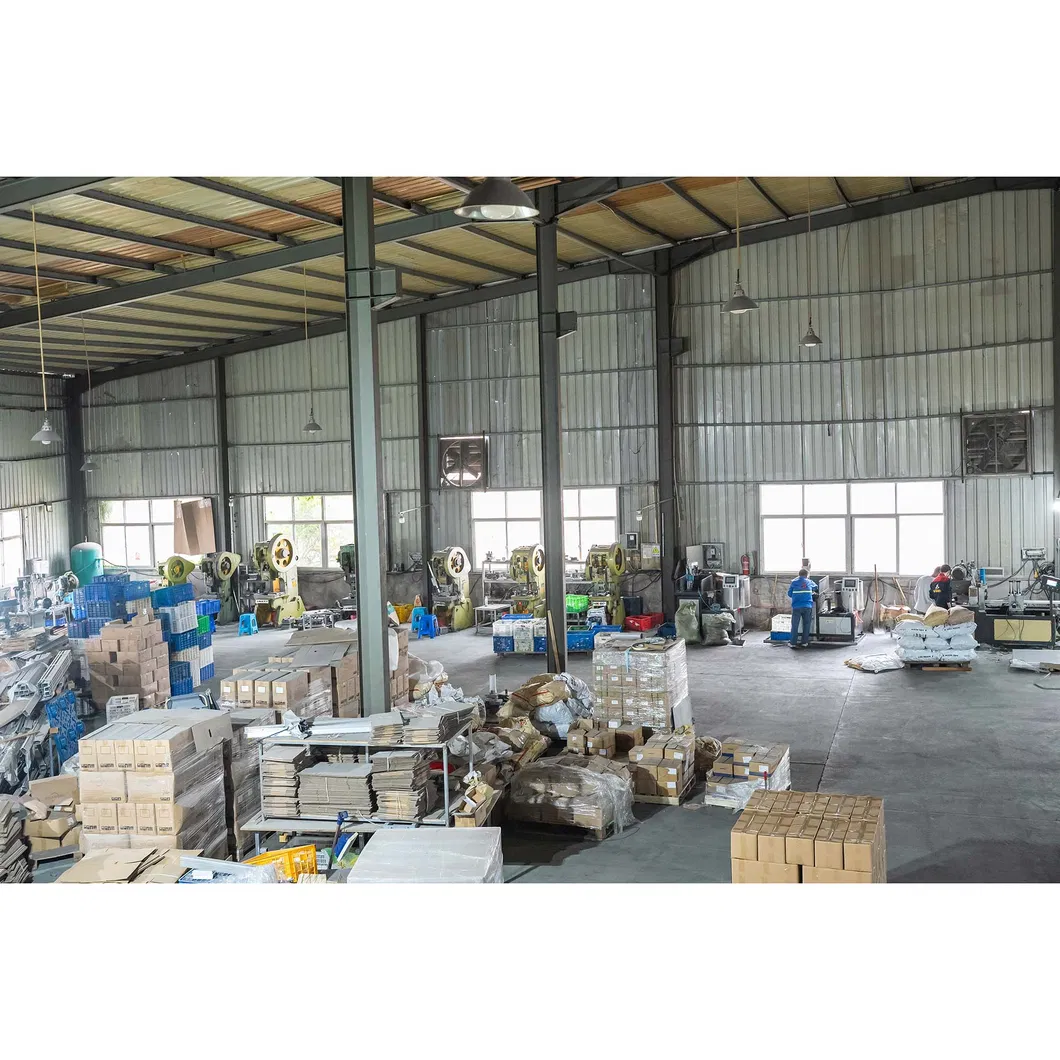

Equipped with professional processing workshops for aluminum alloy and steel materials. Independent production lines manage cutting, drilling, stamping, and forging to ensure high precision. The facility features 6 steel production lines with a monthly productivity of 40-50MW.
