This professional medical drill equipment is designed for orthopedic low-speed endoprosthesis and total arthroplasty replacement. These medical instruments are broadly applied in traumatic surgery, joint surgery, orthopedic surgery, and neurosurgery operations. The unit is fully autoclavable, featuring an imported motor to ensure low noise, high speed, and long service life.
| Working Voltage | 14.4V | Output Power | 130W |
| Unit rise in Temperature | ≤ 25ºC | Input Voltage | AC 220V, 50Hz |
| Output Voltage | 14.4V, 900mA | Charger Input Power | 30VA |
| Charging time | 3 hours | Speed | 300r/min |
| Non-loaded noise | 63dB(A) | Torque | 33000gcm |

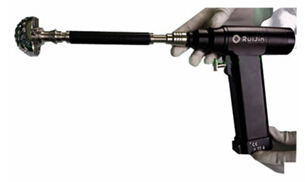

Low speed with great torque, compatible with various acetabulum burnishing and medullary cavity expanding tools.
Main unit can be sterilized by high temperature and high pressure up to 135 ºC.
Variable speed control and brushless motor for increased power with reduced vibration and noise.
Scientific balance technics enhances handpiece control for comfortable surgical operation.

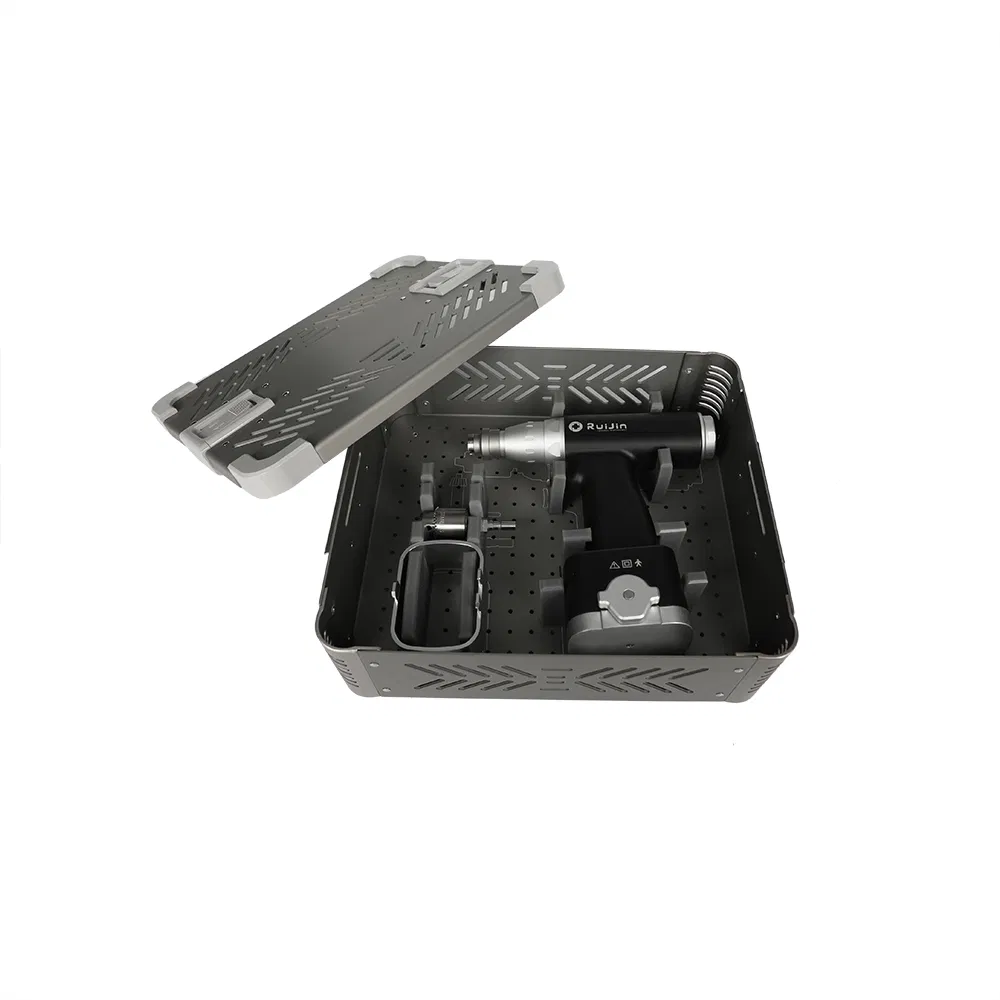

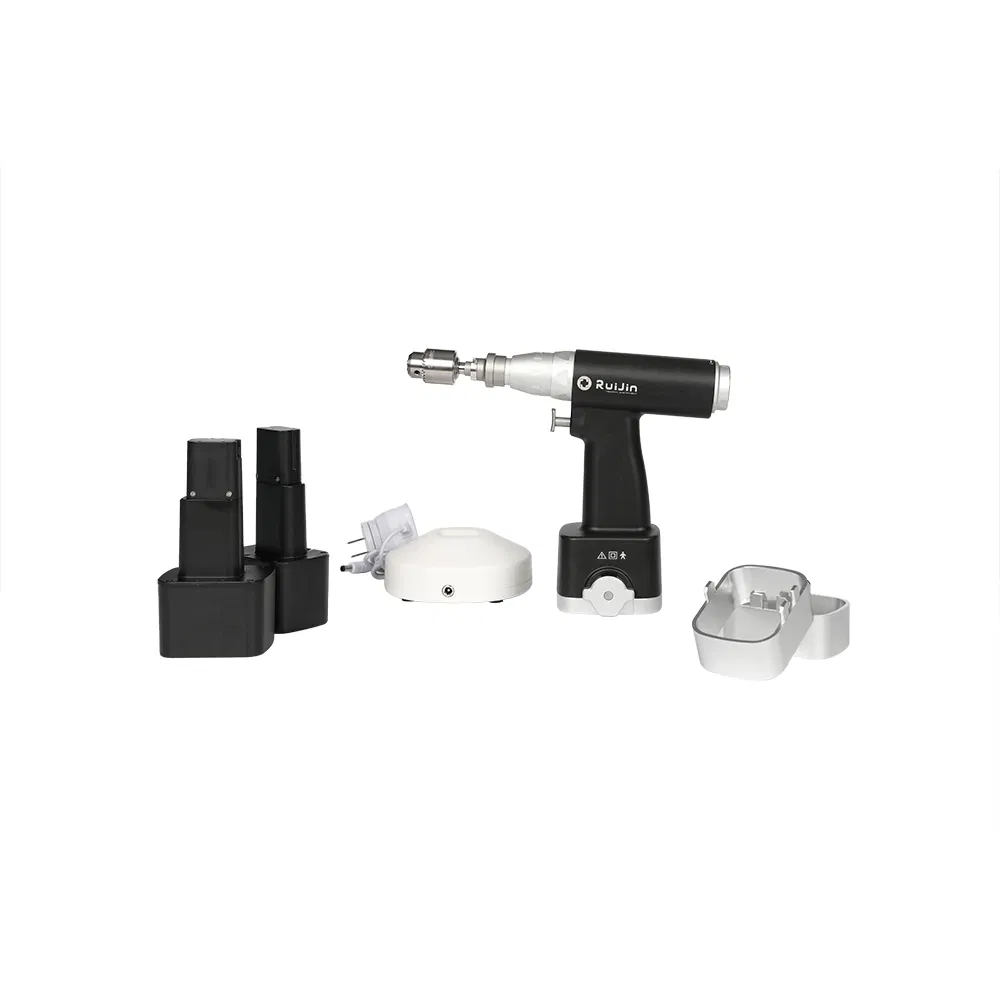

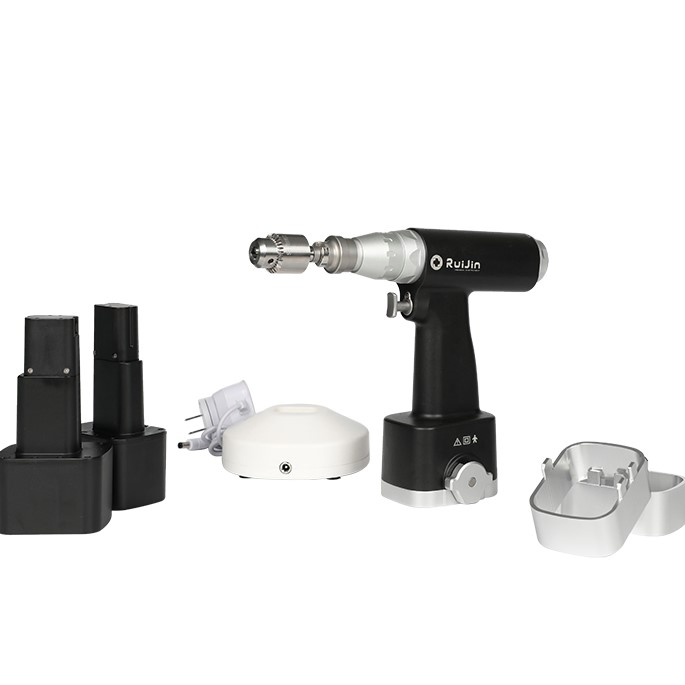

Standard Configuration: One handpiece, one charger, two batteries, one sterilizing channel, one drill chuck, and one aluminum alloy box.
| 1. Only professionals should disassemble the device. |
| 2. Compatible with 110V/60Hz to 220V/50Hz power sources. |
| 3. Remove the battery when not in use to prevent discharge and prolong life. |
| 4. The battery cannot be disinfected; ensure the battery compartment is dry after sterilization. |
| 5. Clean blades and bits with a purifier and dry immediately after operation. |
| 6. Maximum sterilization temperature is 135°C; exceeding this will damage the motor. |
