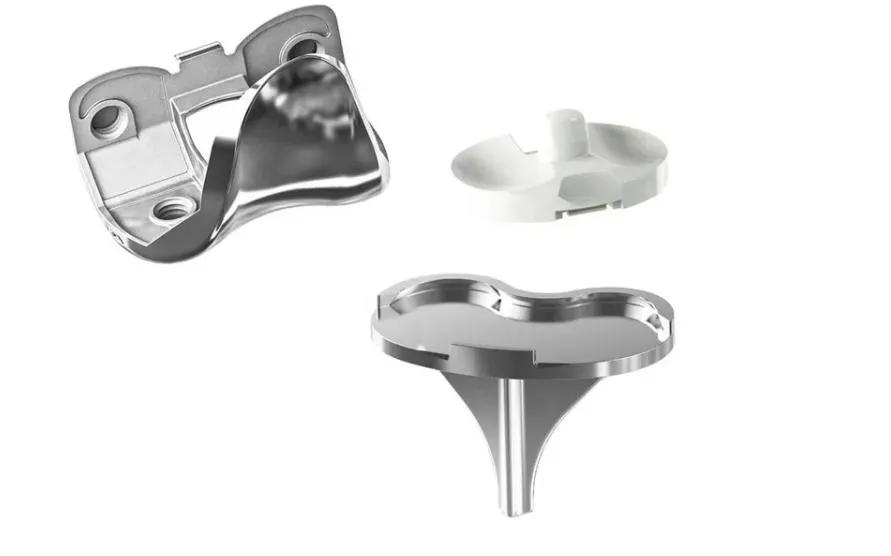

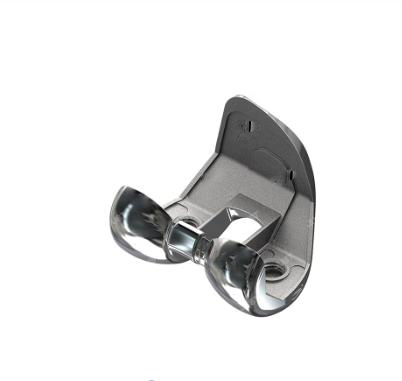

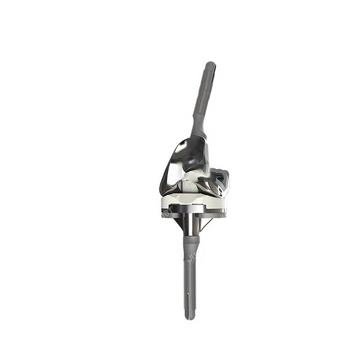

Manufacturer Rsk Femoral Condyle Revision Tka Total Knee Artificial Replacement

• High flexion design
• Optimized patellofemoral articular design

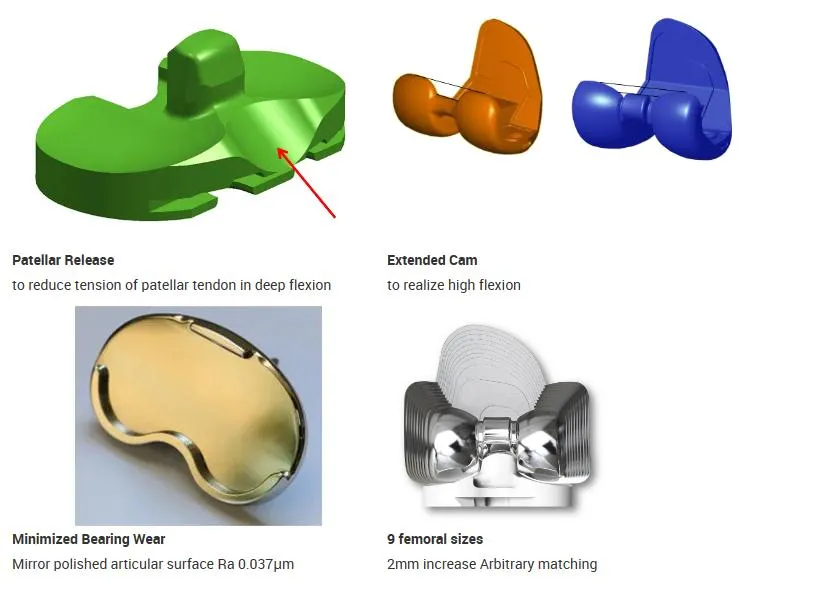

• Almost custom-made component size, 2mm increments in A/P
• Proportional posterior condyles allow for greater contact area in deep flexion
• Mirror polished surface reduces wear and debris post-operatively
• Soften intercondylar notch reduces post wear in flexion
• Cam extension provides increase resistance to dislocation in deep flexion
• All femoral condyle match with tibial tray perfectly

• Material: CoCrMo + Imported PE
• 145° High Flexion capability
• Post Stabilized (PS) configuration
• Mirror Polishing finish

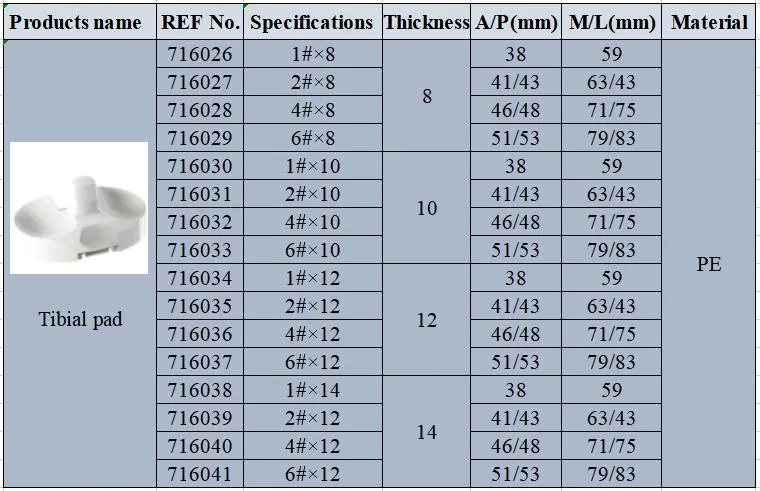

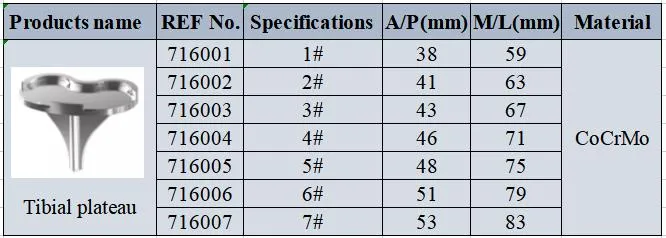

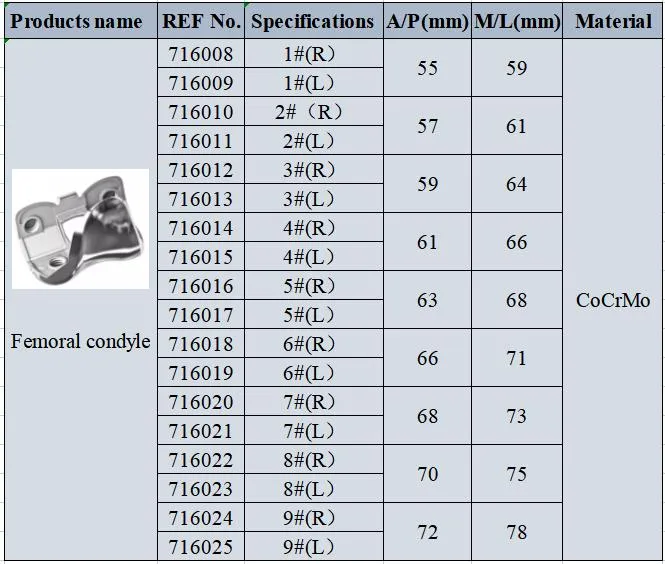

• Specification range: Femoral 1#-9#, Tibial 1#-7#, Pad 1/2/4/6#

Allows for greater range of motion and may be more forgiving to the retinaculum by not over tensioning the soft tissues compared to anatomic box-like profiles.

Anatomic(Green) vs. Swept-back Sagittal Profile (Gray)

The SK1 trochlear groove has been designed to sweep back posteriorly for better patellar performance, resisting patella crepitus and clunk.

Lengthened to support the patella in deep flexion and provide support for the quadriceps tendon during 105-120 degrees of flexion.

Widened to reduce constraining forces in extension. Provides a 6.5 degree valgus angulation and a 2mm lateralized groove to reduce patellar shear stresses.
