Stainless Steel Orthopedic Implant Instrument Set
Stainless Steel Orthopedic Implant Instrument Set
Stainless Steel Orthopedic Implant Instrument Set
Stainless Steel Orthopedic Implant Instrument Set
Stainless Steel Orthopedic Implant Instrument Set
1 / 5
Stainless Steel Orthopedic Implant Instrument Set
Stainless Steel Orthopedic Implant Instrument Set
Stainless Steel Orthopedic Implant Instrument Set
Stainless Steel Orthopedic Implant Instrument Set
Stainless Steel Orthopedic Implant Instrument Set

Stainless Steel Orthopedic Implant Instrument Set

Customization: Available
Application: Orthopedic, Neurosurgery, Microsurgery
Material: Steel
Send Inquiry

Product Description

Basic Information
Model NO.
External Fixation
Feature
Reusable
Certification
CE, ISO13485
Color
White & Black
Usage
Bone Fixation
Material Type
Titanium Alloy & Stainless Steel
Name
External Fixator
Transport Package
Box
Specification
50*50*50CM
Origin
China
HS Code
90211000
Production Capacity
500,000 Pieces/Year
Product Description
External Fixator -- Modular Fixation External Fixation System

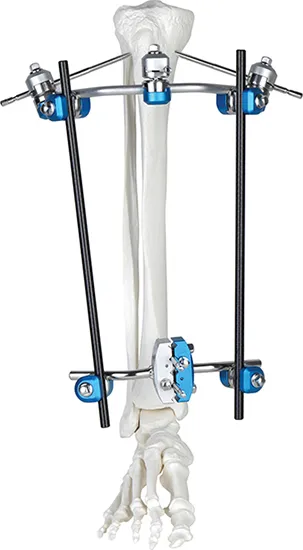

Modular Fixation System
✔Characterized by cutting-edge technology, ensuring ease of use and efficiency.
✔Allows for the independent placement of bone screws in both proximal and distal fractures.
✔Incorporates a snap-fit design, facilitating smoother operations and reducing time requirements.
✔Enhances fracture visibility using high-quality medical aluminum carbon fiber.
✔Provides exceptional stability and optimal elasticity.
✔Ensures a compact and streamlined frame construction.
✔Designed to address the complexity of fractures and soft tissue loss.

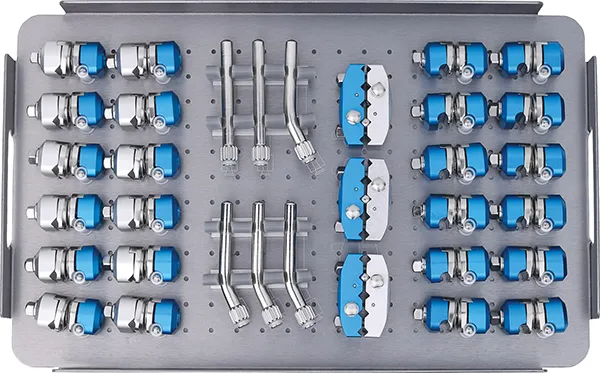

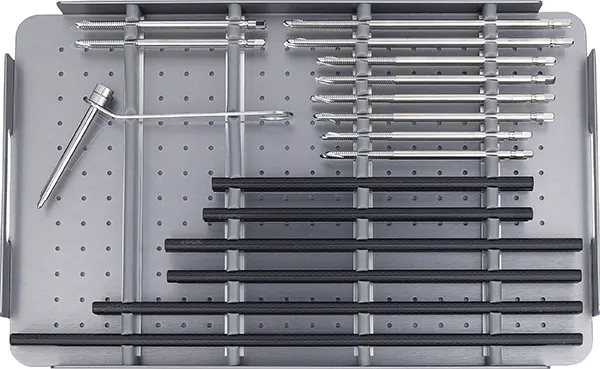

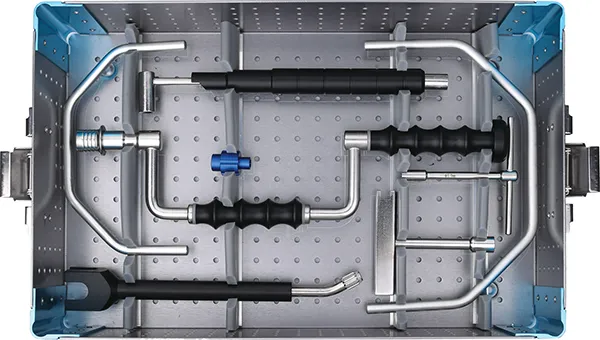

Instrument Set Detail 1 Instrument Set Detail 2 Instrument Set Detail 3
Components Specification
Component Name Specification Quantity
Pin To Rod Couplingφ8/4-512
Rod To Rod Couplingφ8/812
5-Hole Pin Clampφ8/53
Straight Postφ82
30° Postφ84
Self Drilling/Self Tapping Bone Screwsφ5*180 / 150 / 130 / 12020 total
Guidesφ4/51
Carbon Fibre Rodφ8*350 / 300 / 250 / 20012 total
Semi-Circular Curved Connecting Rodφ8*160 / 2002 total

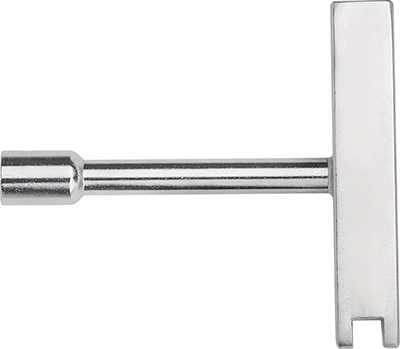

T-Wrench / Torque Wrench#72 total
Stabilization/Reduction Wrench#221
Instrument SetStandard1
Detailed Components

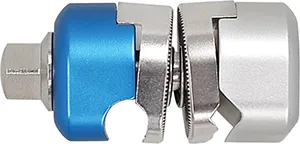

Anti Pin To Rod Coupling
Anti Pin To Rod Coupling
Size: φ8/4-5
Material: Stainless Steel, Aluminum
Quantity: 1 Piece

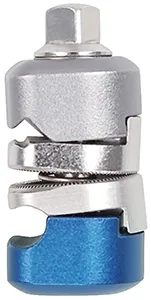

Pin To Rod Coupling
Pin To Rod Coupling
Size: φ8/4-5
Material: Stainless Steel, Aluminum
Quantity: 1 Piece

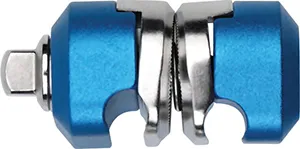

Rod To Rod Coupling
Rod To Rod Coupling
Size: φ8/8
Material: Stainless Steel, Aluminum
Quantity: 1 Piece

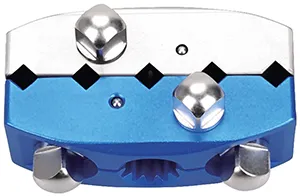

5-Hole Pin Clamp
5-Hole Pin Clamp
Size: φ8/5
Material: Stainless Steel, Aluminum
Quantity: 1 Piece

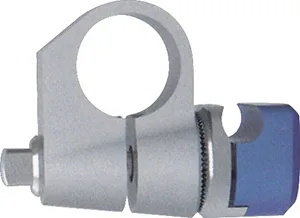

Tube To Rod Coupling
Tube To Rod Coupling
Size: φ20/8
Material: Stainless Steel, Aluminum
Quantity: 1 Piece

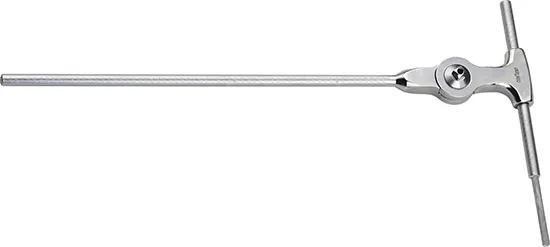

Ankle Joint Mobilizer
Ankle Joint Mobilizer
Size: φ8
Material: Stainless Steel
Quantity: 1 Piece

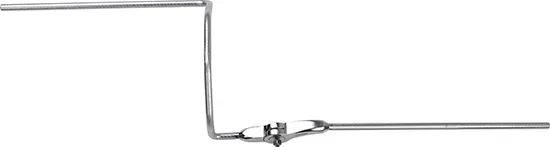

Knee Joint Mobilizer
Knee Joint Mobilizer
Size: φ8
Material: Stainless Steel
Quantity: 1 Piece
Frequently Asked Questions
1. What materials are used in the External Fixation System?
The system primarily utilizes high-quality Titanium Alloy and Stainless Steel for structural integrity, along with Carbon Fiber rods for enhanced radiolucency.
2. Is this external fixator reusable?
Yes, the system is designed to be reusable following proper sterilization and maintenance procedures.
3. What certifications does the product hold?
The product is fully certified with CE and ISO13485 standards, ensuring it meets international medical safety and quality requirements.
4. How does the carbon fiber rod benefit the surgical process?
Carbon fiber rods provide excellent stability and optimal elasticity while allowing for better fracture visibility under X-ray imaging.
5. Does the system support independent screw placement?
Yes, the modular design allows for the independent placement of bone screws in both proximal and distal fracture segments, offering great surgical flexibility.
6. What is the typical application for this fixator?
It is primarily used for bone fixation in complex fractures and cases involving significant soft tissue loss, providing a stable frame for healing.
