Titanium Alloy Orthopedic Implant Instrument Set
Titanium Alloy Orthopedic Implant Instrument Set
Titanium Alloy Orthopedic Implant Instrument Set
Titanium Alloy Orthopedic Implant Instrument Set
Titanium Alloy Orthopedic Implant Instrument Set
1 / 5
Titanium Alloy Orthopedic Implant Instrument Set
Titanium Alloy Orthopedic Implant Instrument Set
Titanium Alloy Orthopedic Implant Instrument Set
Titanium Alloy Orthopedic Implant Instrument Set
Titanium Alloy Orthopedic Implant Instrument Set

Titanium Alloy Orthopedic Implant Instrument Set

Customization: Available
Application: Orthopedic, Neurosurgery, Microsurgery
Material: Steel
Send Inquiry

Product Description

Basic Specifications

Model NO.
External Fixation
Feature
Reusable
Certification
CE, ISO13485
Color
White & Black
Usage
Bone Fixation
Material Type
Titanium Alloy & Stainless Steel
Name
External Fixator
Transport Package
Box
Specification
50*50*50CM
HS Code
90211000
Production Capacity
500,000 Pieces/Year

External Fixator - Modular Fixation System

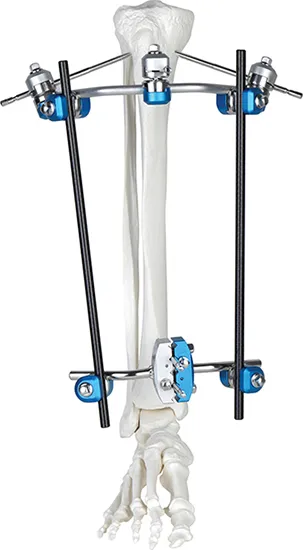

External Fixator System
✔Cutting-Edge Technology: User-friendly operation standing out in the medical field.
✔Flexible Fixation: Independent arrangement of bone screws for proximal and distal fractures.
✔Snap-fit Design: Reduces setup time and facilitates smoother surgical operation.
✔Optimal Visualization: Medical-grade aluminum carbon fiber for clear fracture imaging.
✔Stability & Elasticity: Engineered for enhanced patient outcomes and compact frame design.

Product Visualization

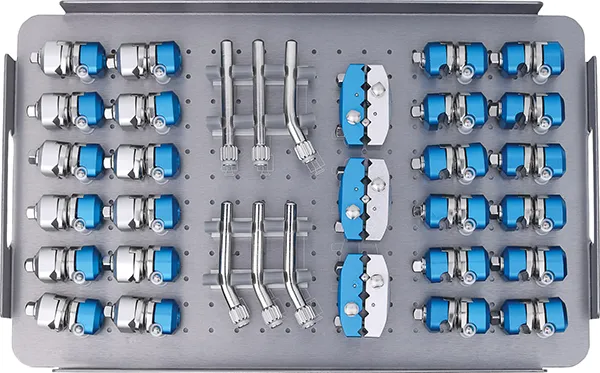

Instrument Set Part 1

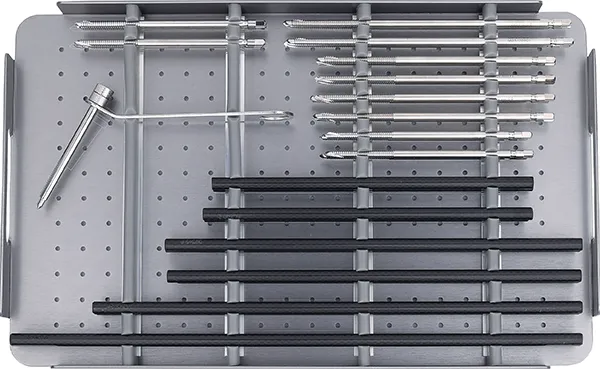

Instrument Set Part 2

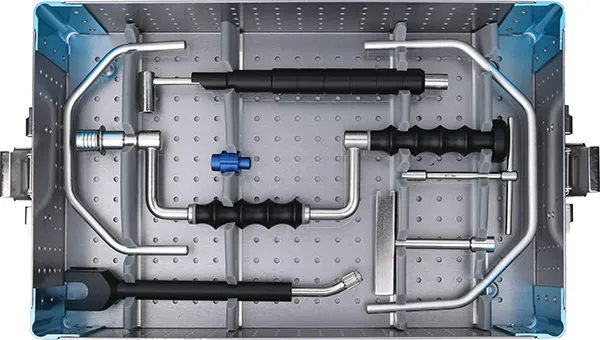

Instrument Set Part 3

Components List

Component Description Size Specification Quantity
Pin To Rod Couplingφ8/4-512
Rod To Rod Couplingφ8/812
5-Hole Pin Clampφ8/53
Straight Postφ82
30° Postφ84
Self Drilling/Self Tapping Bone Screwsφ5*180 / 150 / 130 / 1204-8 each
Guidesφ4/51
Carbon Fibre Rodφ8*350 / 300 / 250 / 2002-4 each
Semi-Circular Curved Connecting Rodφ8*160 / φ8*2001 each
Wrenches (T-Wrench / Reduction / Torque)#7 / #221 each
Drill & Screw Driverφ51 each

Individual Module Details

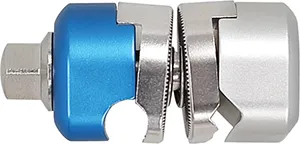

Anti Pin To Rod Coupling
Anti Pin To Rod Coupling
Size: φ8/4-5
Material: Stainless Steel, Aluminum

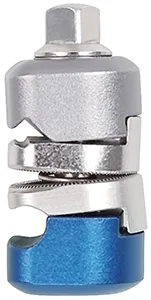

Pin To Rod Coupling
Standard Pin To Rod Coupling
Size: φ8/4-5
Material: Stainless Steel, Aluminum

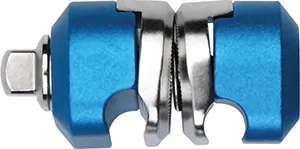

Rod To Rod Coupling
Rod To Rod Coupling
Size: φ8/8
Material: Stainless Steel, Aluminum

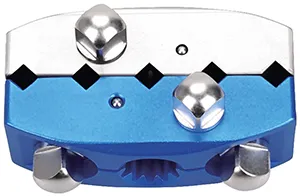

5-Hole Pin Clamp
5-Hole Pin Clamp
Size: φ8/5
Material: Stainless Steel, Aluminum

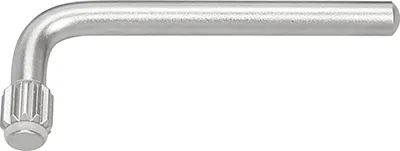

90 Degree Post
90° Post
Size: φ8
Material: Stainless Steel, Aluminum

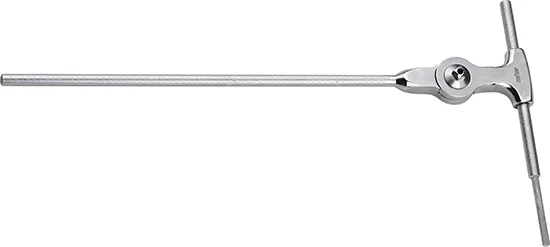

Ankle Joint Mobilizer
Ankle Joint Mobilizer
Size: φ8
Material: Stainless Steel

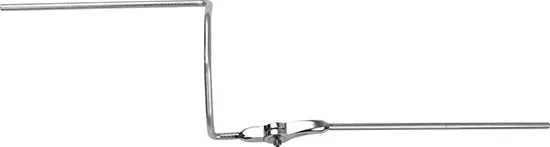

Knee Joint Mobilizer
Knee Joint Mobilizer
Size: φ8
Material: Stainless Steel

Frequently Asked Questions

What materials are used in this external fixator system?
The system is constructed using high-quality Titanium Alloy and Stainless Steel for optimal strength and biocompatibility.
Is this orthopedic instrument set reusable?
Yes, the system is designed to be reusable, providing a cost-effective solution for bone fixation procedures.
How does the snap-fit design improve surgery?
The snap-fit design facilitates smoother operation and significantly reduces the time required for frame setup during medical procedures.
What certifications does this product hold?
The external fixation system is fully certified with CE and ISO13485 standards, ensuring compliance with international medical quality requirements.
Can the carbon fiber rods improve imaging?
Yes, the use of medical-grade aluminum carbon fiber elevates the clarity of fracture visualization during X-rays and other imaging processes.
Does the system allow for flexible screw placement?
Absolutely. It features independent arrangement of bone screws in both proximal and distal fractures for flexible and precise fixation.
