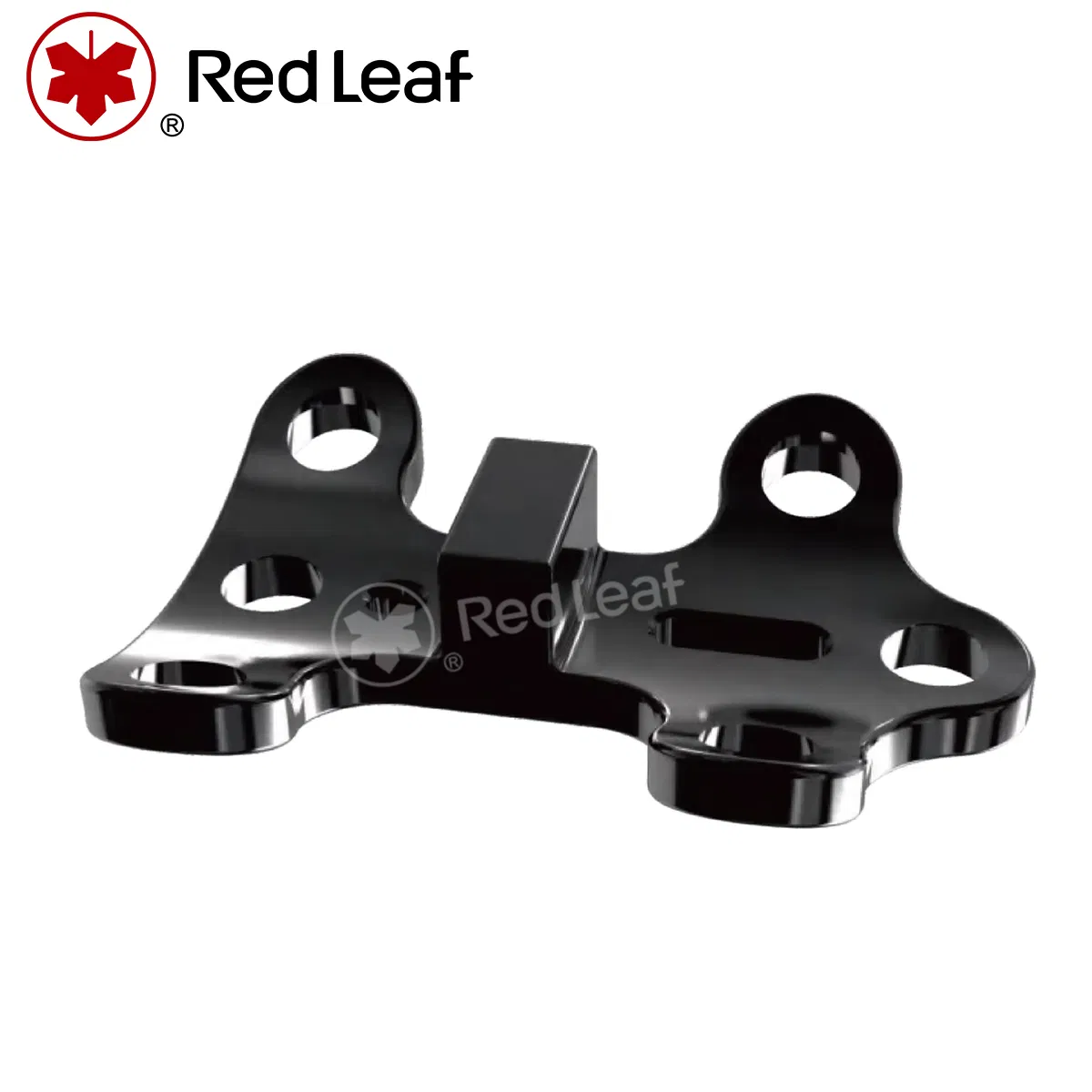

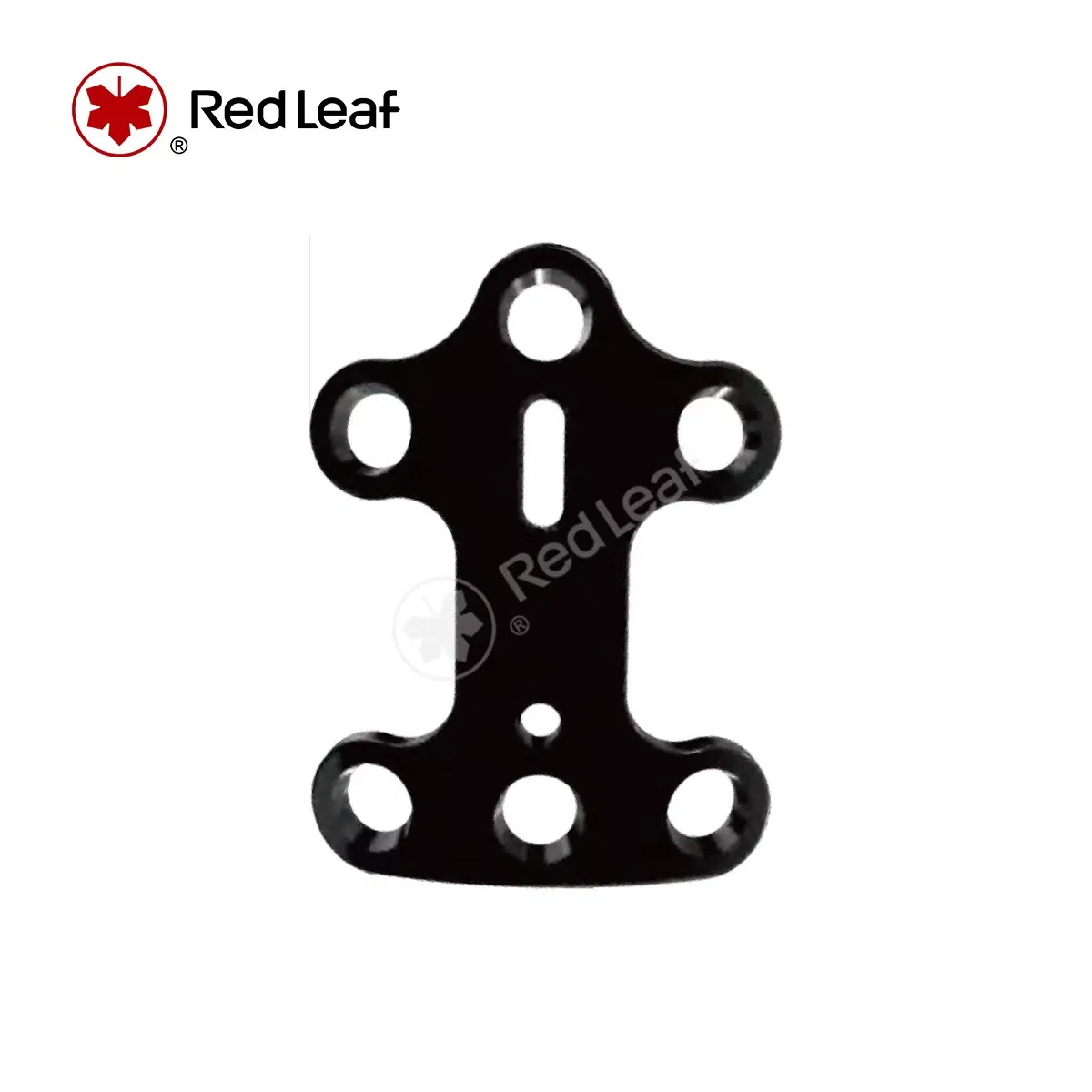

Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
1 / 3
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery
Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery

Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Information

Model NO.:
Evans
Usage:
Correct Deformities, Fracture Fixation
Package:
Carton
Specification:
30x23x2
Origin:
China
🔍

Product Description

Osteotomy Locking Plate Overview
💡 Design Concept

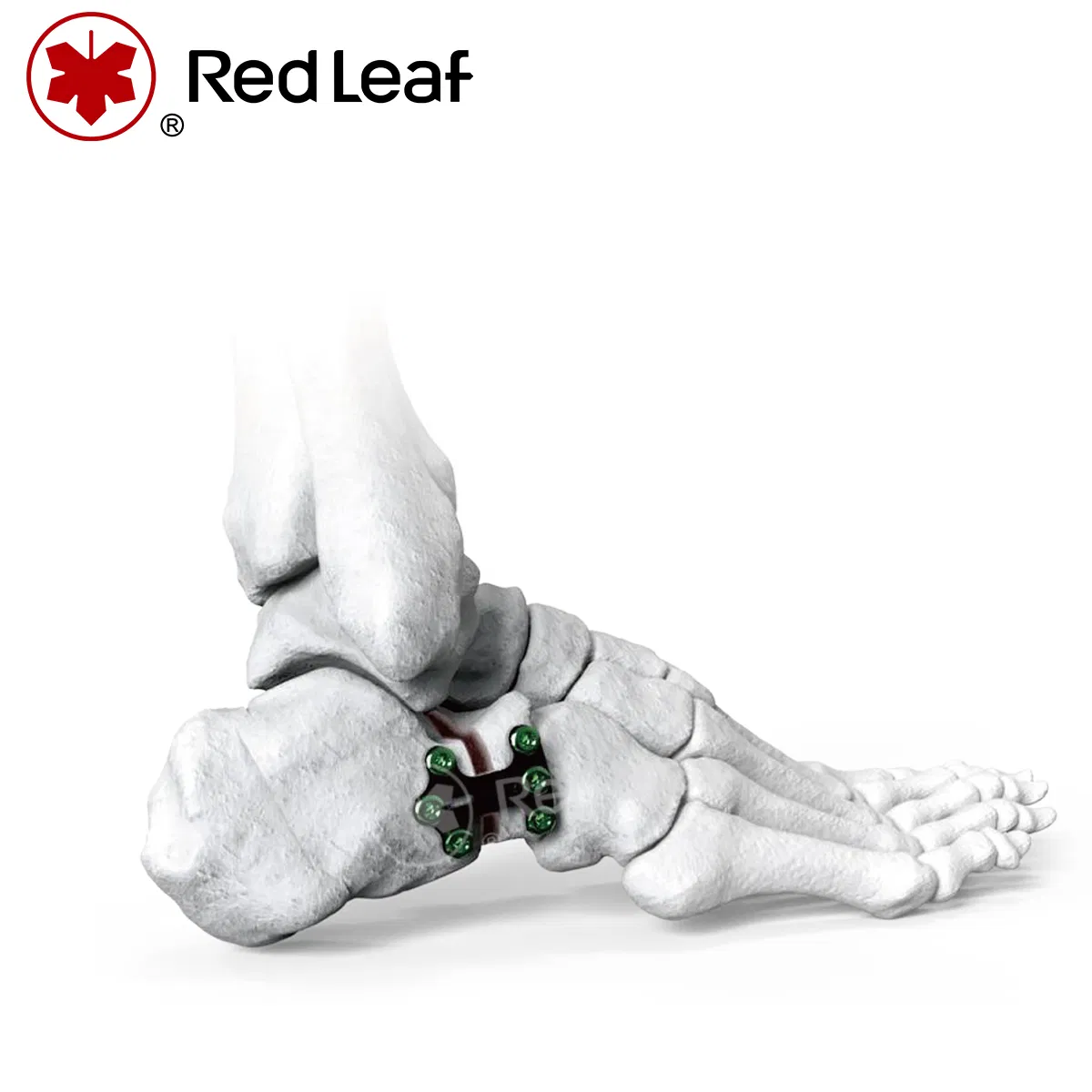

  • Suitable for flatfoot and valgus deformities
  • Transverse osteotomy of calcaneal neck
  • The distance between the osteotomy surface and the calcaneocuboid joint surface is 10-15mm

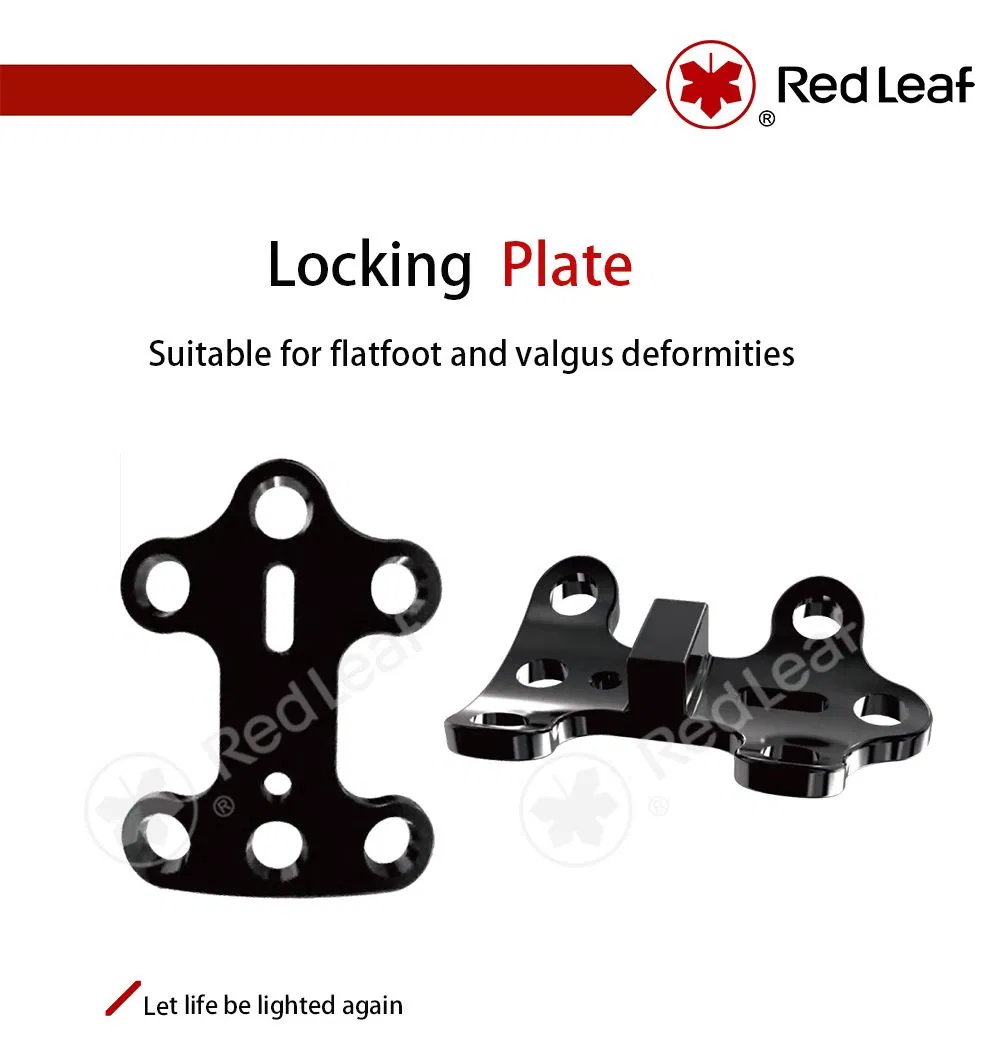

Product Technical View
⚙️ Key Points
  • Transverse osteotomy of the calcaneal neck, with the osteotomy surface 10-15mm away from the calcaneocuboid joint surface
  • After cutting the inner cortex with a swing saw, slow down the cutting speed to avoid damaging the inner soft tissue
  • Evenly spread, with parallel openings, considering bone ingrowth and preventing bone non-union
🔩 Screw Information
  • Matching screw: 3.5 self-tapping locking screw
  • Length: 6-40mm, one specification per 2mm
  • Kirschner wire: 1.9mm
  • Material: TC4 titanium alloy
📏

Product Parameters

Specifications Length (mm) Width (mm) Thickness (mm) Step Width Cushion Block Height
Big 36.0 23.0 2.0 6/8/10 6/8/10
Middle 30.0 23.0 2.0 4/6/8 4/6/8
Small 26.0 23.0 2.0 2/4/6 2/4/6
Sizing Illustration 1
Sizing Illustration 2
🖼️

Visual Reference

Detailed Component View
Product Application
Final Assembly
❓

FAQ

Are you a factory or trading company?
We are a Professional Manufacturer specializing in emergency medical equipment and orthopedic rehabilitation products.
What are your primary trading terms?
We typically work with T/T (30% deposit, 70% balance against B/L) or L/C. Standard lead times are 15-25 days after deposit.
How does your after-sales service work?
We offer a 12-month warranty from the date of receipt. During this period, free spare parts and technical guidance are provided for replacements.
What quality certifications do you hold?
Our products are certified with FSC, CE, FDA, ISO9001, ISO13485, and EN1865 standards.
Can the locking plate be customized for specific surgeries?
Our plates come in Big, Middle, and Small sizes with varying step widths to accommodate different clinical requirements for flatfoot correction.
What material is used for the orthopedic plates?
The plates and screws are manufactured using high-grade TC4 titanium alloy for biocompatibility and strength.
