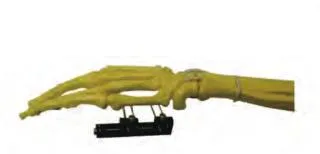

Application: Used for patients with fractures of limbs.
Suitable for these situations:
✓Ordinary open fractures
✓The contaminated open fractures
✓Severe comminuted fractures
✓Fracture of soft tissue serious damage
✓Temporary fixed Joint ligament which is not stable
| Code |
Specification |
Details |
| D501 |
Long 85mm |
- |
| D502 |
Middle 75mm |
- |
| D503 |
Short 65mm |
- |
| Schanz Pin |
| Diameter(mm) 2.0 |
Specification(mm) |
screw length/thread length |
Material: Aluminum
Surface Finished: Black or according to customers' requirements
Remark: Customized service is available
Certificate: CE & ISO
Key Advantages
★Less damage to the blood supply of the bone
★Minimal interference with soft-tissue cover
★Rapid application in an emergency situation
★Stabilization of open and contaminated fractures
★Fracture reduction and stable fixation adjustable without surgery
★Good solution in situations with high risk of infection or established infection
★Bone transport and deformity correction possible
Frequently Asked Questions

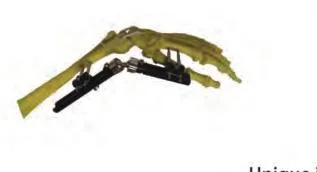

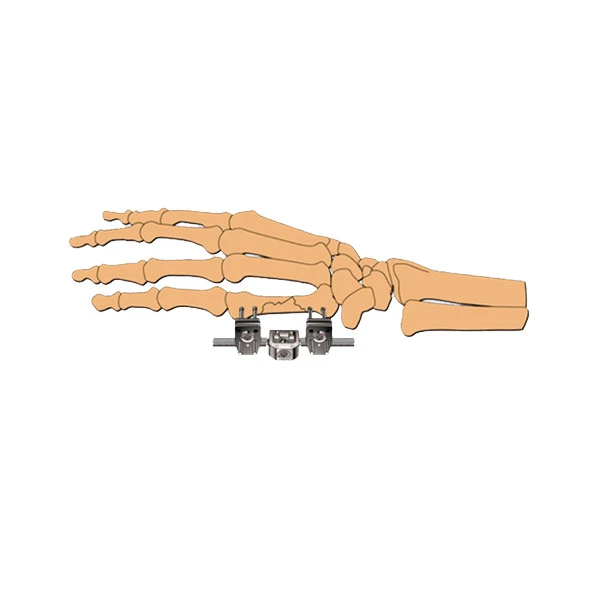

Q1: What is the primary application of the Mini Horizontal External Fixator?
It is primarily used for patients with fractures of limbs, specifically designed for hospital trauma operations involving severe or contaminated fractures.
Q2: What materials are used in the construction of this device?
The device is made from high-quality materials including Aluminum Alloy, Steel, and in some components, Carton or Peek, ensuring durability and reliability.
Q3: Is this orthopedic fixator reusable?
Yes, the device is designed to be reusable, making it a cost-effective solution for orthopedic trauma stabilization.
Q4: Does the fixator require additional surgery for adjustments?
No, one of the key advantages is that fracture reduction and stable fixation are adjustable without the need for further surgery.
Q5: Which certifications does this product hold?
The product is fully certified with CE, FDA, and ISO13485 standards, ensuring it meets international medical safety requirements.
Q6: What sizes are available for the fixator?
It comes in three standard specifications: Long (85mm), Middle (75mm), and Short (65mm) to accommodate different patient needs.
