Basic Info
Model NO.:External Fixation
Feature:Reusable
Certification:CE, ISO13485
Color:White & Black
Usage:Bone Fixation
Material Type:Titanium Alloy & Stainless Steel
Name:External Fixator
Transport Package:Box
Specification:50*50*50CM
Origin:China
HS Code:90211000
Capacity:500,000 Pieces/Year
Product Description

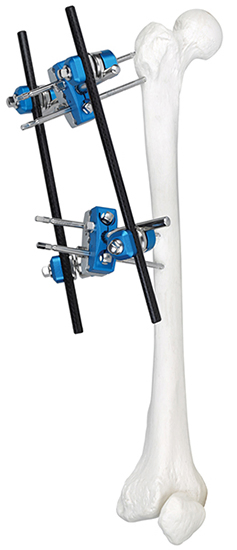

External Fixator-- Modular Fixation External Fixation System
Distinguished Product Features
⚙️
Engineered with cutting-edge technology for unparalleled ease of use.
🔧
Allows independent arrangement of bone screws for both proximal and distal fractures.
⚡
Snap-fit design for streamlined operation, significantly reducing time and effort.
🔬
Utilize medical-grade aluminum carbon fiber to enhance clarity of fracture vision.
🛡️
Provides optimal stability and flexibility for superior performance.
📦
Compact frame design for improved efficiency and handling.

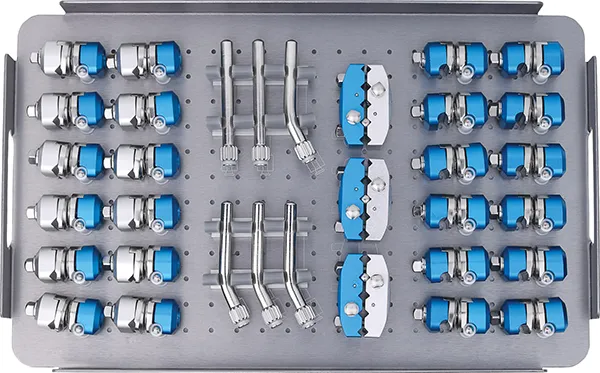

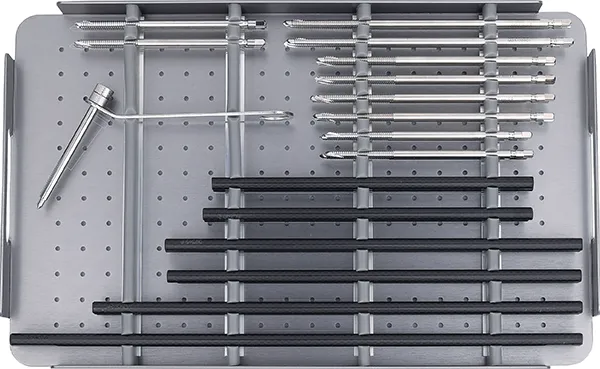

System Components & Configuration
| Component Name |
Specification |
Quantity |
| Pin To Rod Coupling | φ8/4-5 | 12 |
| Rod To Rod Coupling | φ8/8 | 12 |
| 5-Hole Pin Clamp | φ8/5 | 3 |
| Straight Post | φ8 | 2 |
| 30° Post | φ8 | 4 |
| Self Drilling/Self Tapping Bone Screws | φ5*180 / 150 / 130 / 120 | 20 Total |
| Guides | φ4/5 | 1 |
| Carbon Fibre Rod | φ8*350 / 300 / 250 / 200 | 12 Total |
| Semi-Circular Curved Connecting Rod | φ8*160 / 200 | 2 |
| T-Wrench / Reduction Wrench | #7 / #22 | 2 |

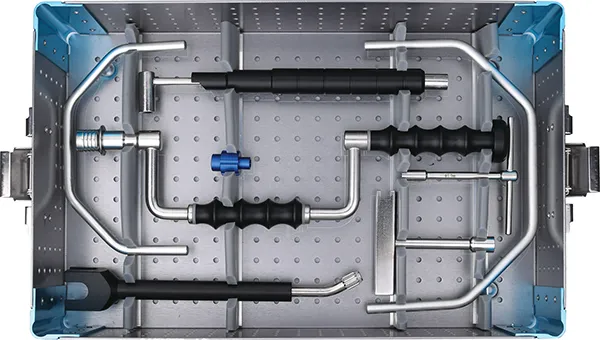

| Instrument Set | Standard | 1 |
Specific Application Fixators

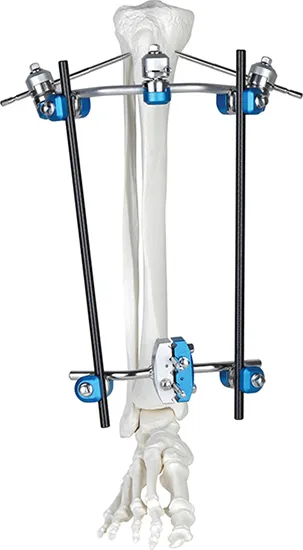

Proximal Tibia External Fixator
| Rod to Rod Coupling φ8/8 | 4 Pcs |
| Pin To Rod Coupling φ8/4-5 | 3 Pcs |
| Carbon Fibre Rod | 2 Pcs |
| Used For | Proximal Tibia |

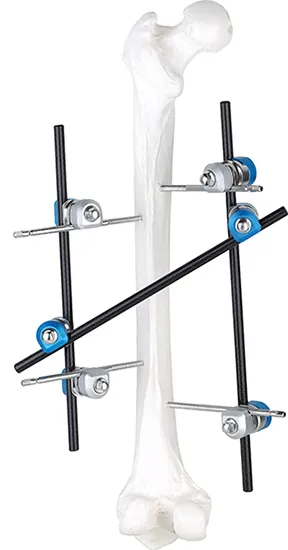

Femoral Shaft Fixator
| Rod To Rod Coupling φ8/8 | 2 Pcs |
| Carbon Fibre Rod 8*250mm | 2 Pcs |
| Bone Screws 5*150mm | 4 Pcs |
| Used For | Femoral Shaft |

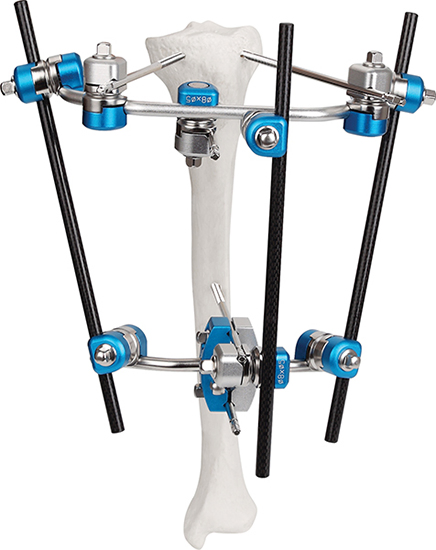

Half Ring Fixator (Standard)
| Rod To Rod Coupling φ8/8 | 6 Pcs |
| 30° Post φ8 | 4 Pcs |
| Carbon Fibre Rod 8*300mm | 2 Pcs |
| Used For | Tibia Perone |

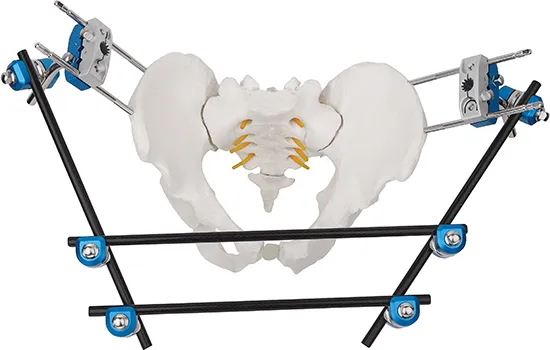

Pelvic Fixator
| Rod To Rod Coupling | 6 Pcs |
| 5-Hole Pin Clamp | 2 Pcs |
| Carbon Fibre Rod | 4 Pcs |
| Used For | Pelvic Fractures |

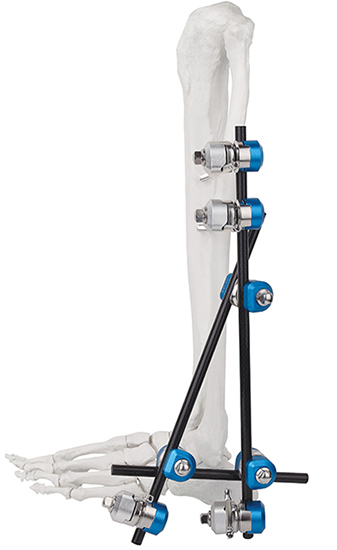

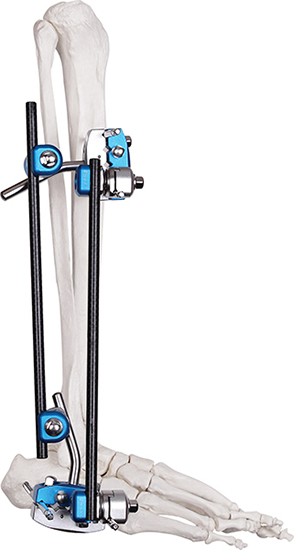

Ankle Joint Fixator
| Rod To Rod Coupling φ8/8 | 3 Pcs |
| Pin To Rod Coupling φ8/4-5 | 4 Pcs |
| Carbon Fibre Rod 8*250mm | 2 Pcs |
| Used For | Ankle Joint |
Frequently Asked Questions
❓ What materials are used in the External Fixation System?
The system is constructed from high-quality Titanium Alloy, Stainless Steel, and medical-grade aluminum carbon fiber to ensure durability and radiolucency.
❓ Is this modular fixation system reusable?
Yes, the external fixation frame components are designed to be reusable after proper sterilization, following standard medical protocols.
❓ What certifications does this product hold?
The system is fully certified with CE and ISO13485, meeting international standards for orthopedic surgical instruments.
❓ What are the benefits of the snap-fit design?
The snap-fit design allows for rapid assembly and streamlined operation, which significantly reduces the time required during surgical procedures.
❓ Can this system handle complex fractures?
Absolutely. It is specifically designed to address complex fractures and soft tissue loss, providing both optimal stability and flexibility.
❓ How does carbon fiber improve the procedure?
The use of medical-grade carbon fiber in the rods enhances the clarity of fracture vision under X-ray and imaging, allowing for more precise reduction and monitoring.
